Components Location

WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

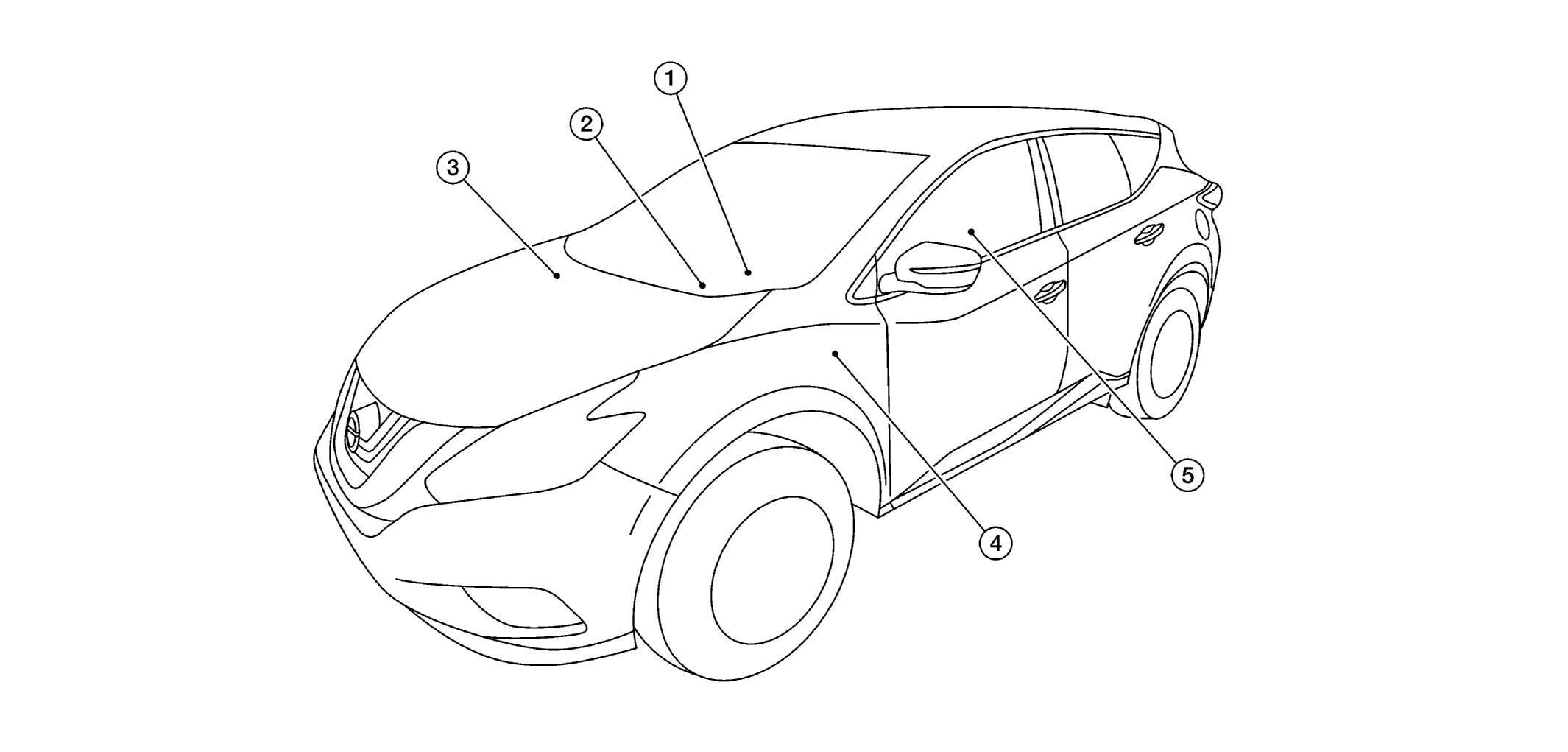

Fig 1: Warning Chime System Components Location
GNSALNIA1680ZZ-680Courtesy of NISSAN NORTH AMERICA, INC.
No. Component Function
1. Combination meter
  • Receives a buzzer output signal from the BCM via CAN communication and sounds the buzzer.
  • Judges whether the parking brake is released using the vehicle speed signal and the parking brake switch signal, and sounds the buzzer if necessary.
2. BCM Based on the signals received from various units and switches, transmits the buzzer output signal to the combination meter via CAN communication.
Refer to COMPONENTS LOCATION for detailed installation location.
3. ABS actuator and electric unit
(control unit)		 Transmits the vehicle speed signal to the combination meter via CAN communication.
Refer to COMPONENTS LOCATION for detailed installation location.
4. Parking brake switch Transmits the parking brake switch signal to the combination meter.
5. Seat belt buckle switch LH Transmits a seat belt buckle switch signal LH to the combination meter.
