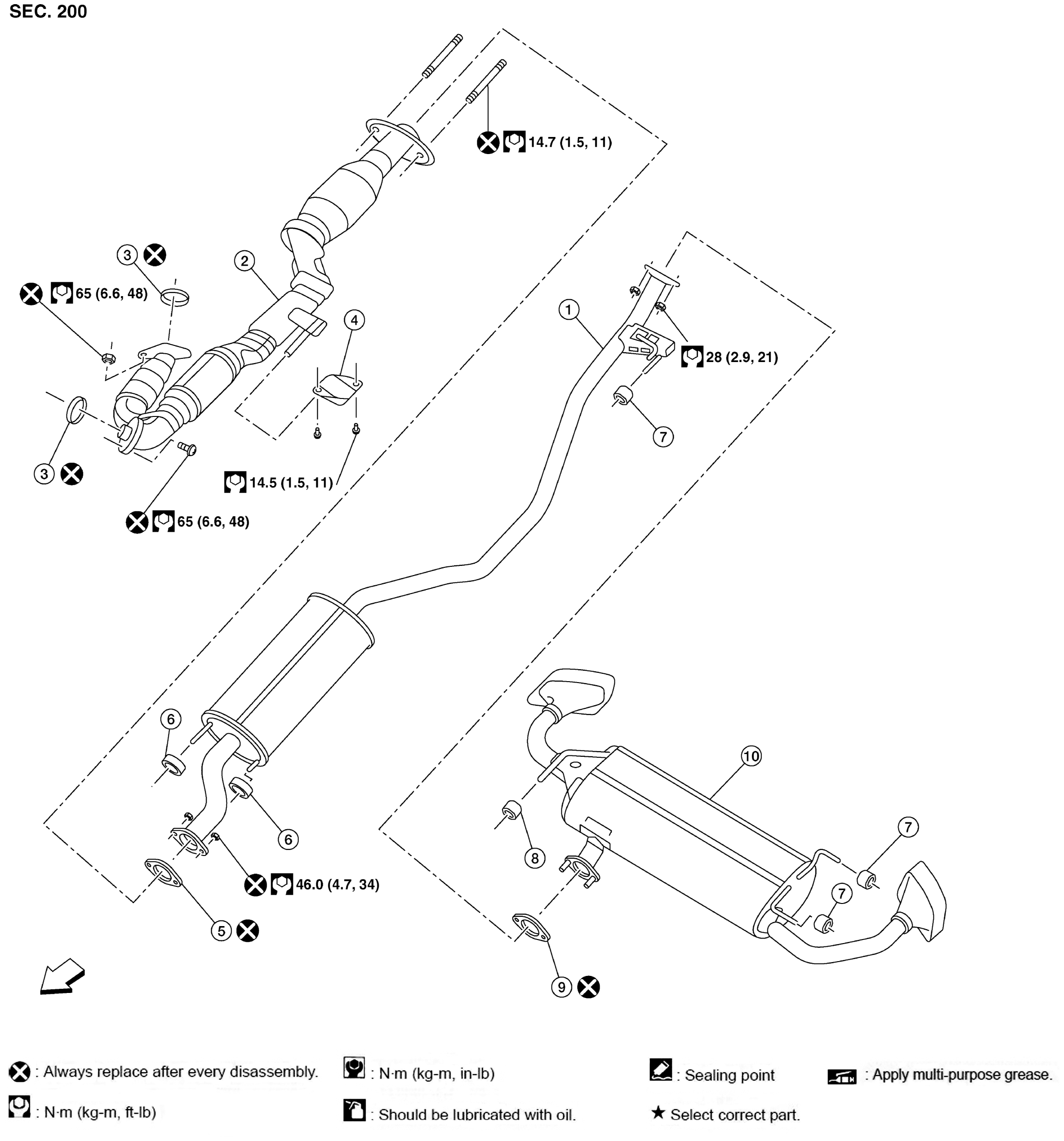

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Center Exhaust Tube |
2. |
Front Exhaust Tube |
3. |
Ring Gasket |
| 4. |
Front Exhaust Tube Bracket |
5. |
Gasket |
6. |
Mounting Rubber |
| 7. |
Mounting Rubber |
8. |
Mounting Rubber |
9. |
Gasket |
| 10. |
Muffler |
Arrow |
Front |
|
|
