Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

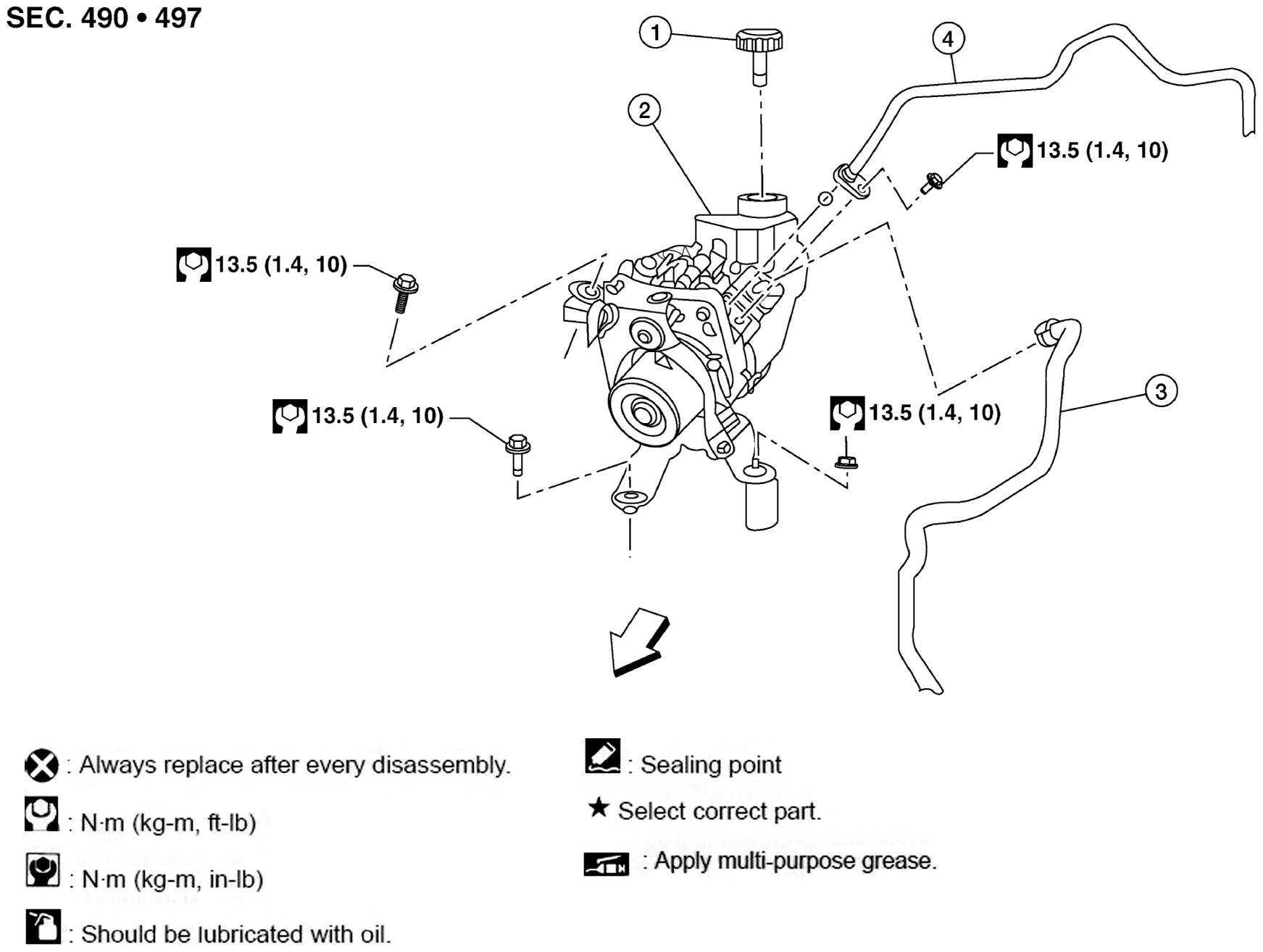

Fig 1: Exploded View Of Power Steering Oil Pump With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Power Steering Reservoir Cap	2.	Power Steering Oil Pump	3.	Low-Pressure Piping
4.	High-Pressure Piping	Arrow	Front
