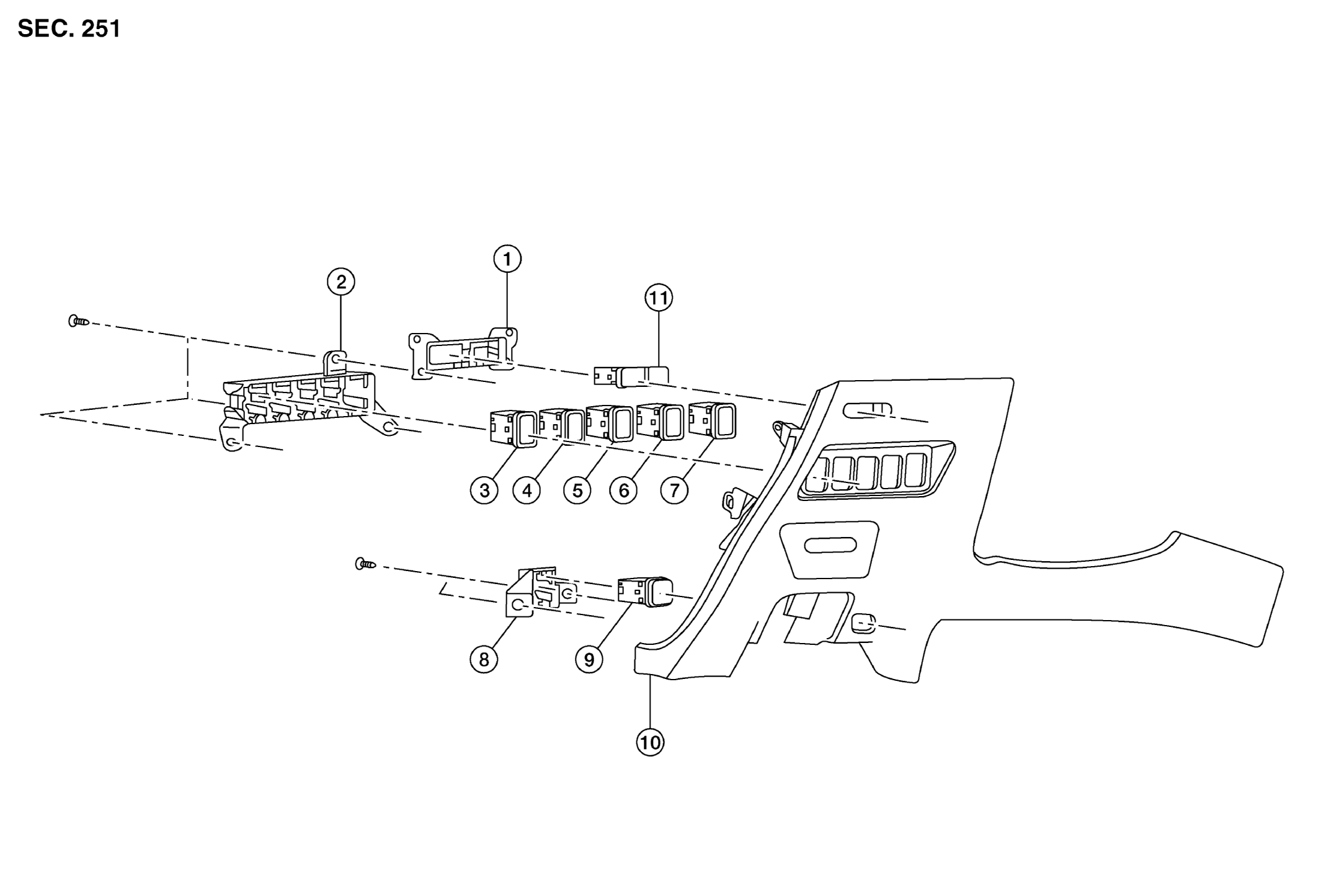

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Upper Switch Carrier |
2. |
Middle Switch Carrier |
3. |
VDC OFF switch |
| 4. |
Mask |
5. |
Automatic Back Door Switch |
6. |
Heated Steering Wheel Switch |
| 7. |
Mask |
8. |
Lower Switch Carrier |
9. |
Front Power Return Switch |
| 10. |
Instrument Lower Panel LH |
11. |
Illumination Control Switch |
|
|
