With Around View Monitor System

WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

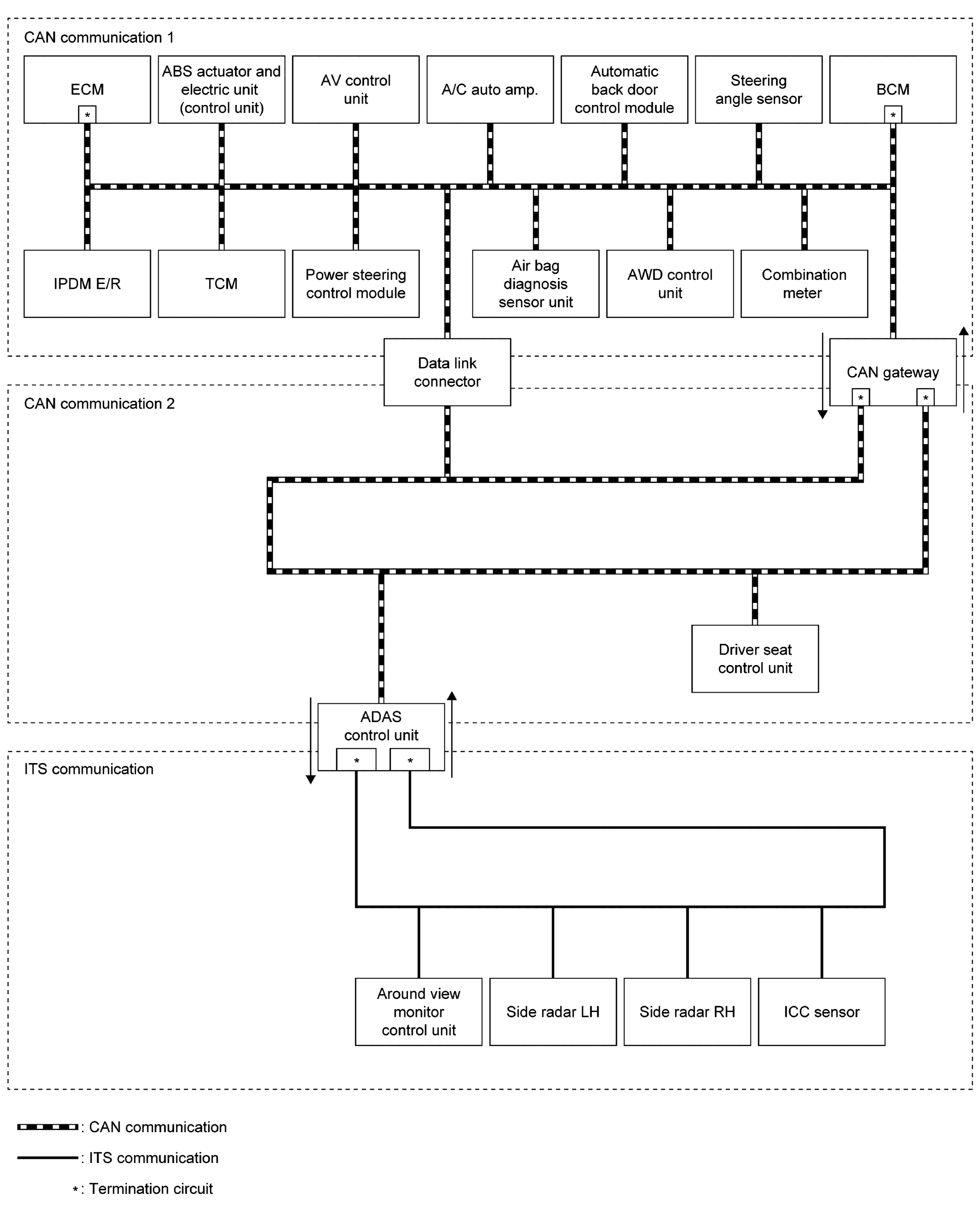

Fig 1: CAN Communication System Diagram (With Around View Monitor System)
GNSJSMIA2041GB-041Courtesy of NISSAN NORTH AMERICA, INC.
