Disassembly And Assembly: Disassembly

WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the brake caliper from the vehicle. Refer to REMOVAL AND INSTALLATION .
  2. Remove slide pin boots from torque member.
  3. Remove slide pin bushing from slide pin.
  4. Place a wooden block in the cylinder body and blow air from union bolt hole to remove piston and piston boot.

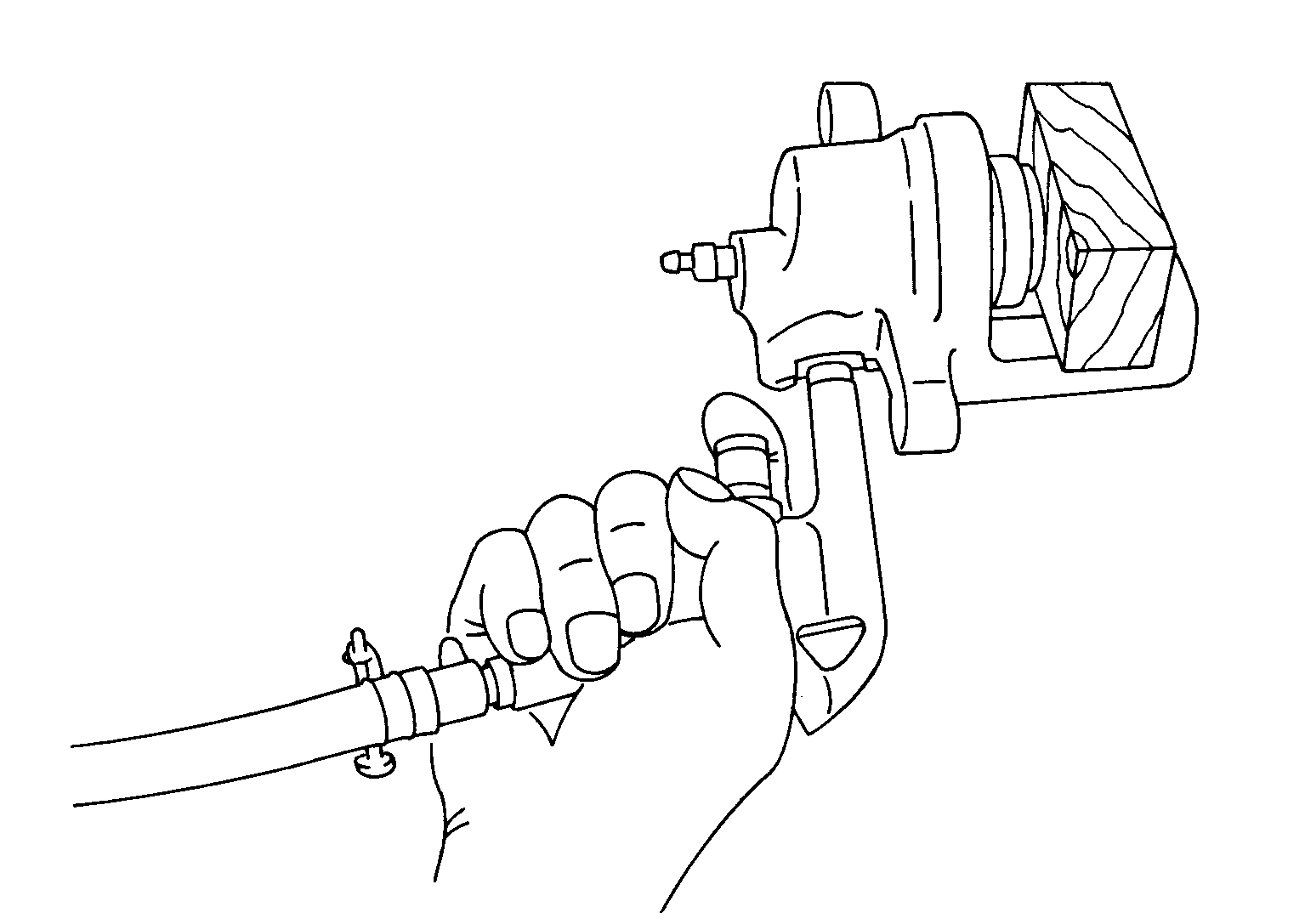

    Fig 1: Removing Piston And Piston Boot
    G04076658Courtesy of NISSAN NORTH AMERICA, INC.
    WARNING:

    Do not get fingers caught between pistons and brake caliper body.

    CAUTION:

    Do not reuse piston boot.

  5. Remove piston seal from brake caliper body using suitable tool.
    Fig 2: Removing Piston Seal From Cylinder Body Using Suitable Tool
    G05207992Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Do not damage cylinder inner wall.
    • Do not reuse piston seal.
  6. Remove bleeder valve and cap.
