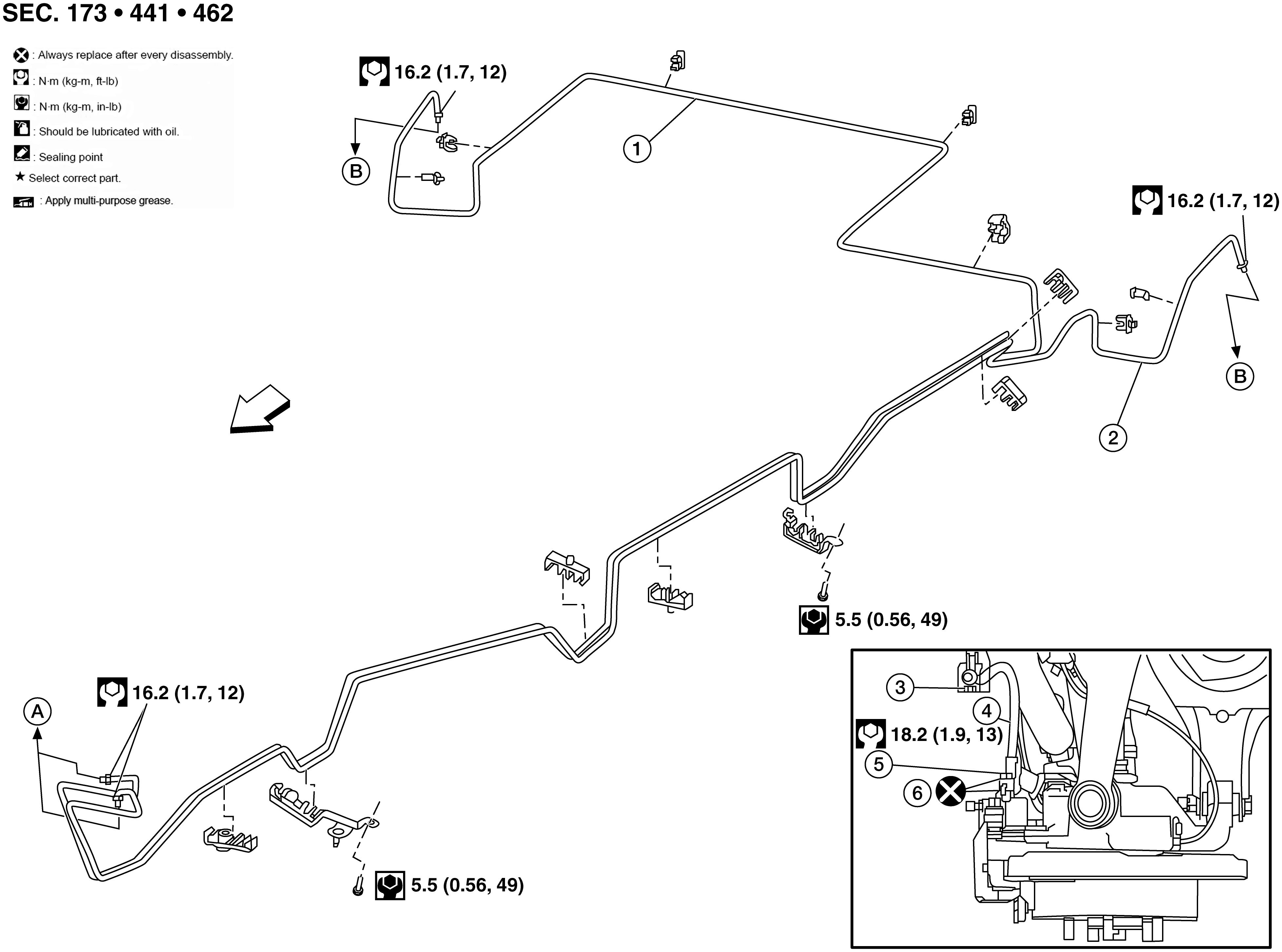

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Rear Brake Pipe Assembly (RH) |
2. |
Rear Brake Pipe Assembly (LH) |
3. |
Lock Plate |
| 4. |
Rear Brake Hose |
5. |
Union Bolt |
6. |
Copper Sealing Washers |
| A. |
To Brake Pipe Connector |
B. |
To Rear Brake Hose |
Arrow |
Front |
