Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

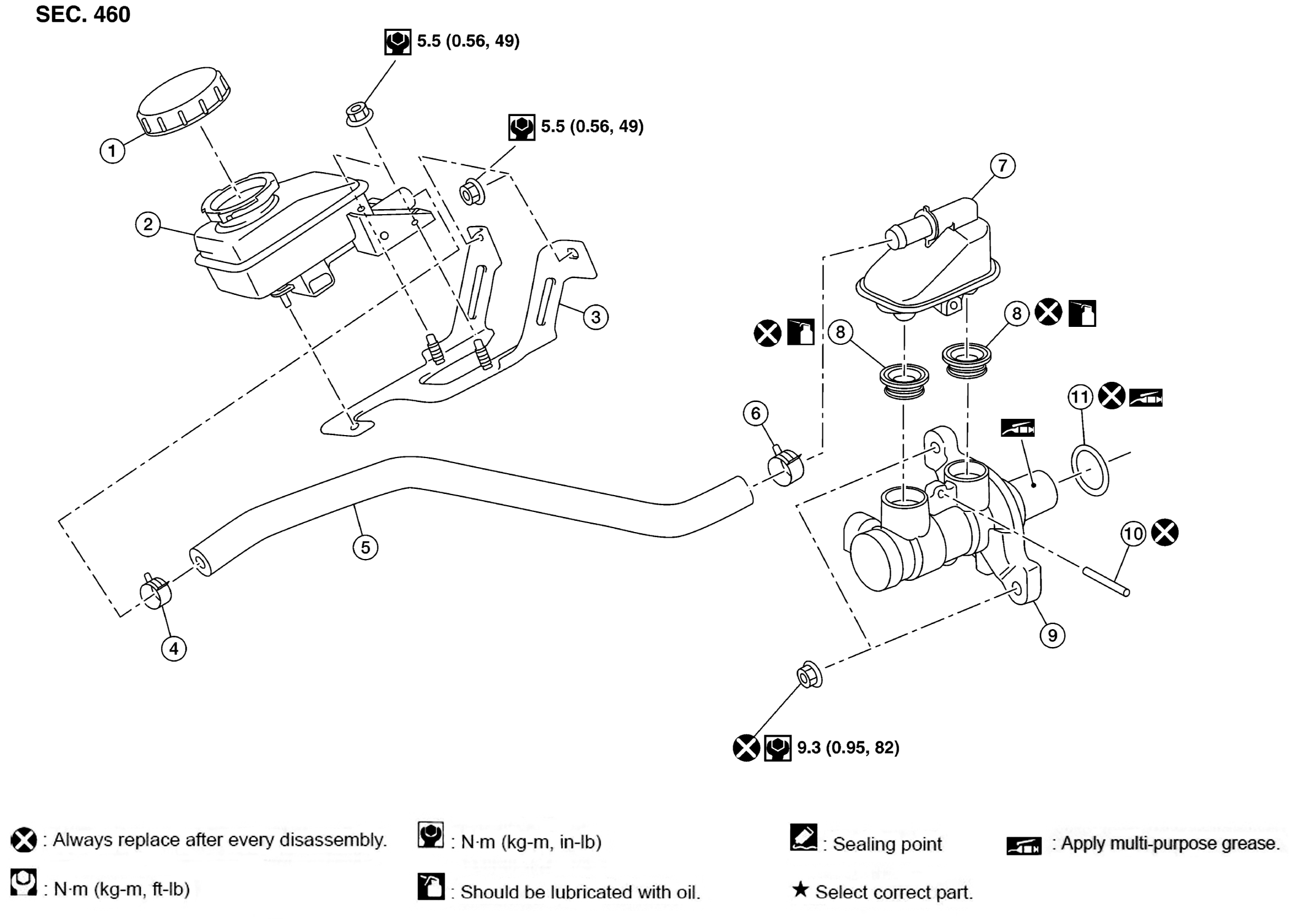

Fig 1: Exploded View Of Brake Master Cylinder With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Sub Tank Cap	2.	Sub Tank	3.	Sub Tank Bracket
4.	Clamp	5.	Hose	6.	Clamp
7.	Reservoir Tank	8.	Grommet	9.	Cylinder Body
10.	Pin	11.	O-ring
