System Display

WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

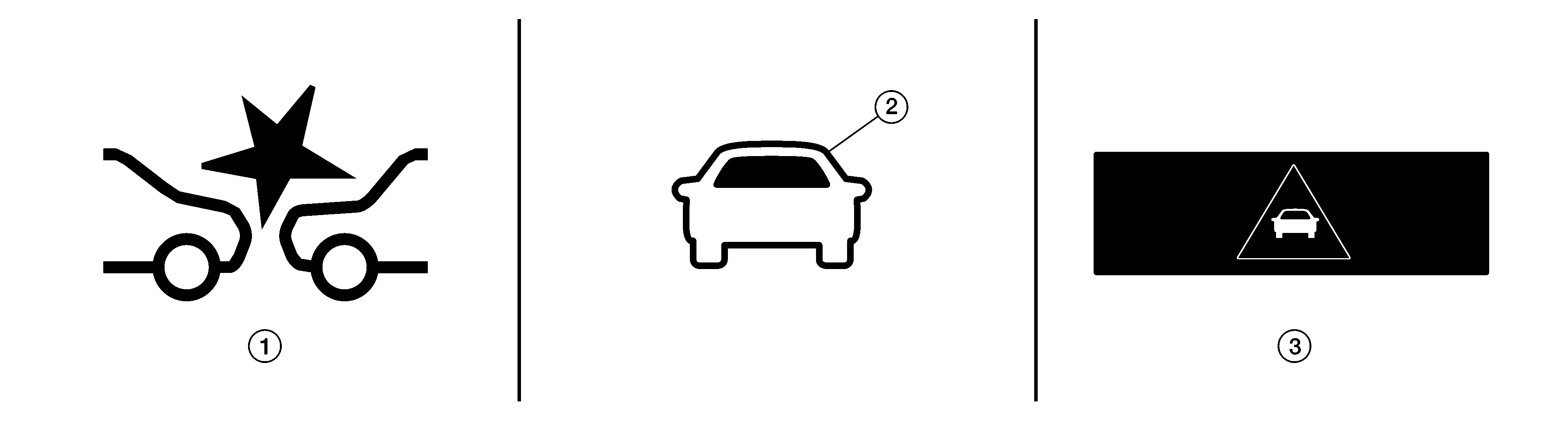

Fig 1: System Switch Displays

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Switch Name	Description
1.	FEB Warning Lamp	FEB warning lamp indicates that an abnormal condition is present in FEB system When the FEB system turns OFF, the FEB warning lamp will illuminate.
2.	Vehicle Ahead Detection Indicator	Indicates whether it detects a vehicle ahead Blinks when approaching vehicle ahead
3.	FEB Warning	Displays immediately before the harder brake operates
