Steering Angle Sensor

WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Detects the following information and transmits steering angle signal to ABS actuator and electric unit (control unit) via CAN communication:

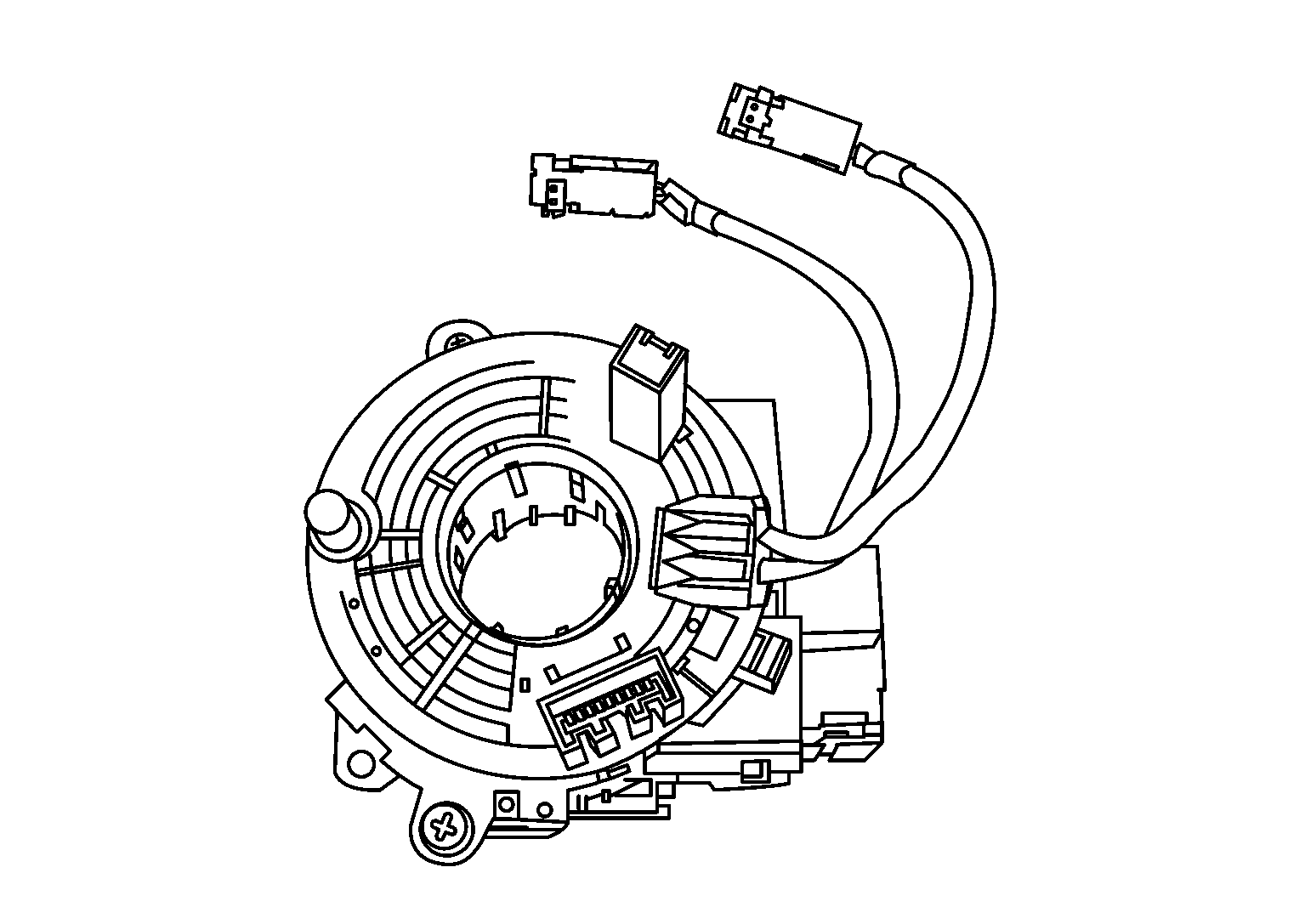

Fig 1: Identifying Steering Angle Sensor

Courtesy of NISSAN NORTH AMERICA, INC.

Steering angle sensor malfunction signal
Steering wheel rotation amount
Steering wheel rotation angular velocity
Steering wheel rotation direction
