Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

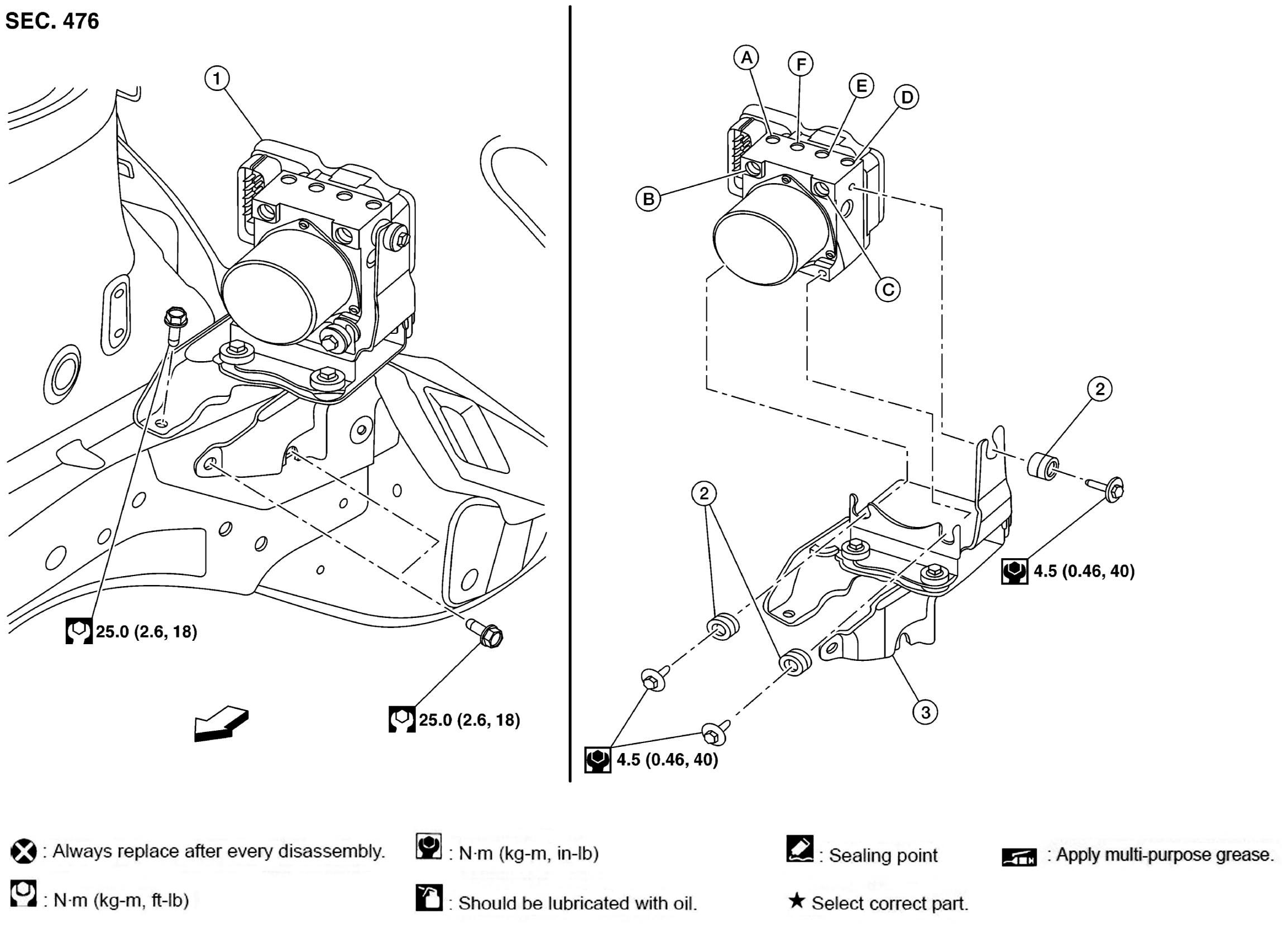

Fig 1: Exploded View Of ABS Actuator And Electric Unit (Control Unit) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ABS Actuator And Electric Unit (Control Unit)	2.	Bushings	3.	Bracket
A.	To Front RH Brake Caliper	B.	From Master Cylinder Secondary Side	C.	From Master Cylinder Primary Side
D.	To Front LH Brake Caliper	E.	To Rear RH Brake Caliper	F.	To Rear LH Brake Caliper
Arrow	Front
