Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

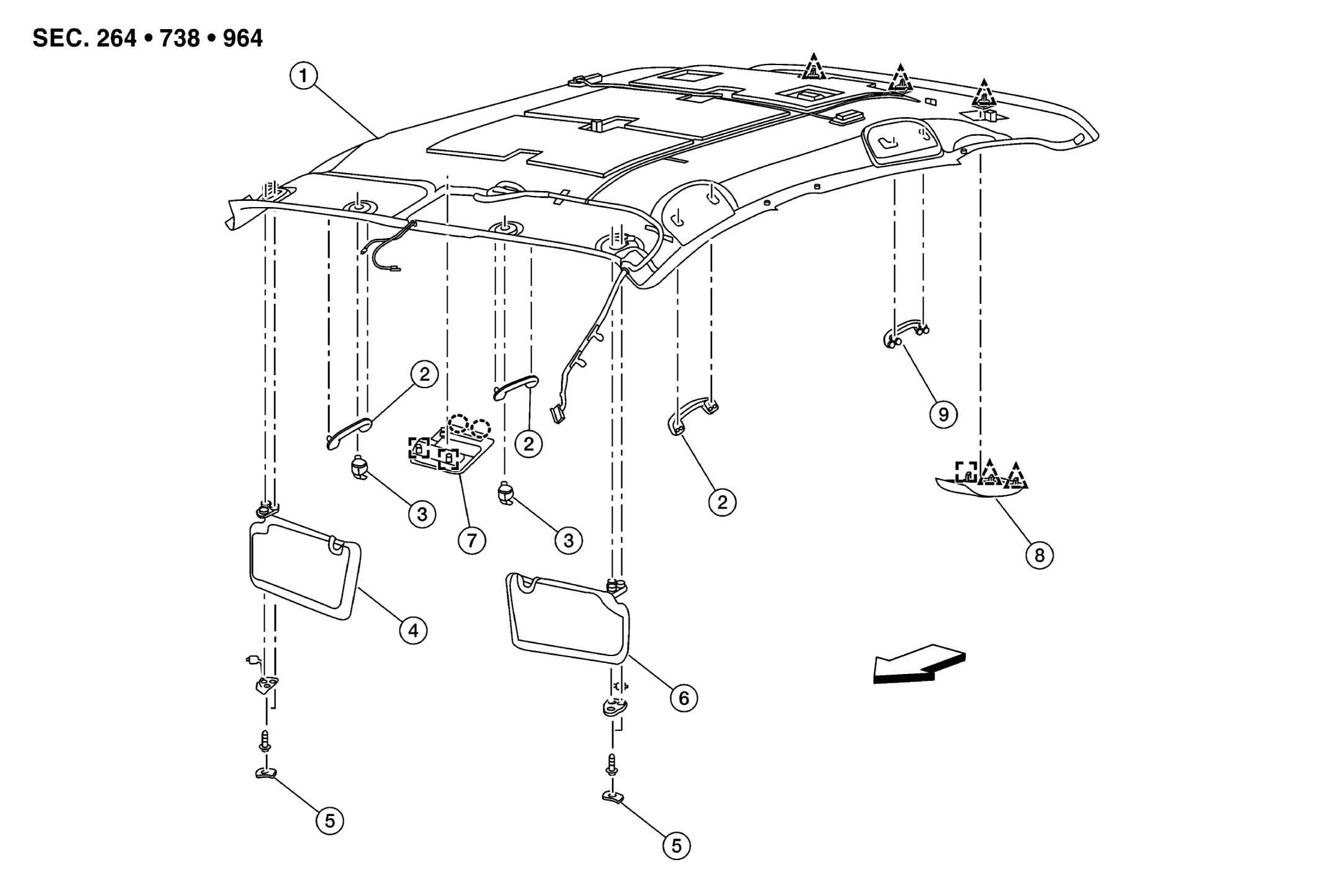

WITH PANORAMIC ROOF GLASS
| 1. | Headlining | 2. | Assist Grip (Without Coat Hanger) | 3. | Sun Visor Holder (LH/RH) |
| 4. | Sun Visor (RH) | 5. | Sun Visor Cover (LH/RH) | 6. | Sun Visor (LH) |
| 7. | Front Room/Map Lamp Assembly | 8. | Rear Seat Belt Center Retractor Finisher | 9. | Assist Grip (With Coat Hanger) |
| Arrow | Front | Δ | Clip | □ | Metal Clip |
| ◦ | Pawl |

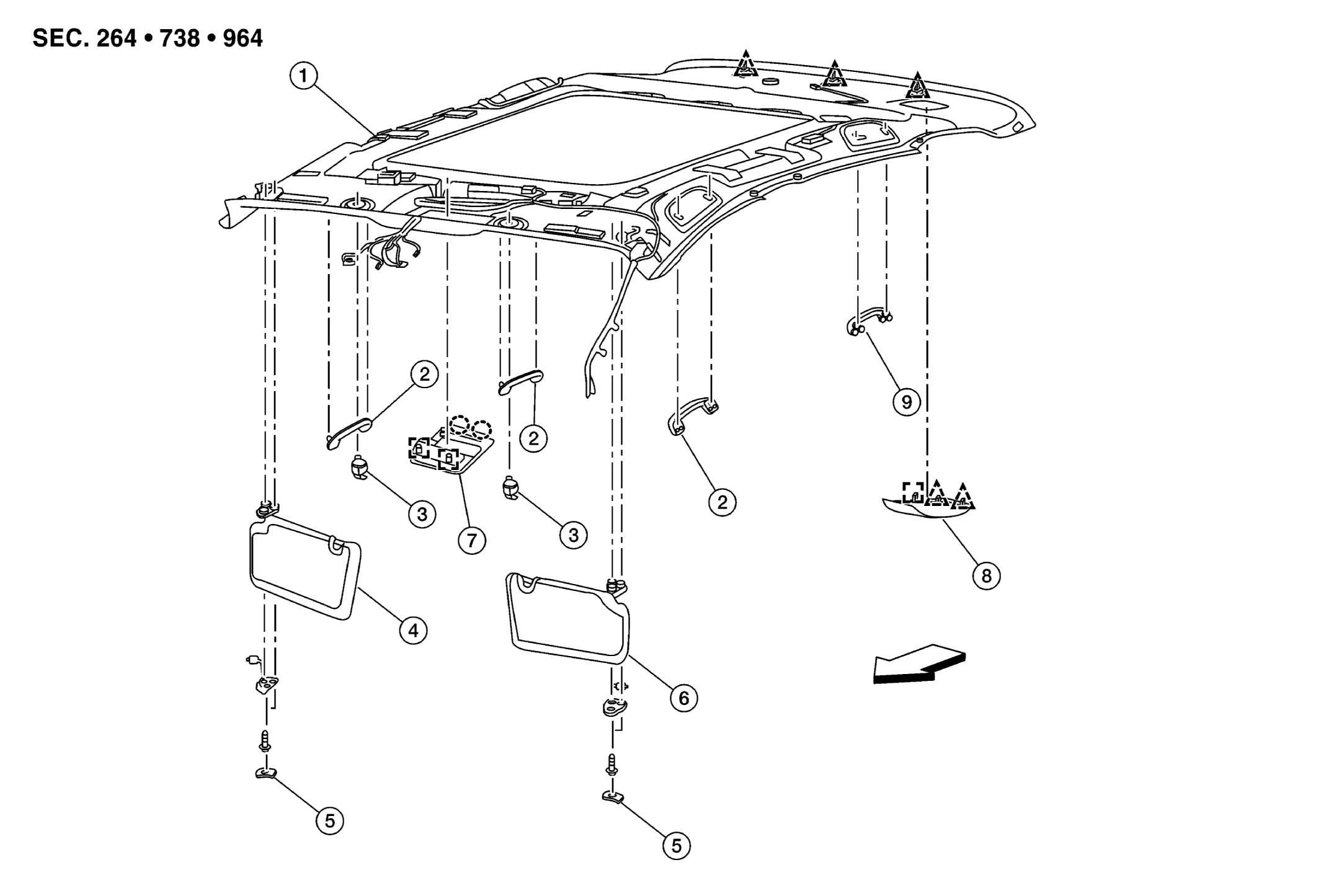

WITHOUT PANORAMIC ROOF GLASS
| 1. | Headlining | 2. | Assist Grip (Without Coat Hanger) | 3. | Sun Visor Holder (LH/RH) |
| 4. | Sun Visor (RH) | 5. | Sun Visor Cover (LH/RH) | 6. | Sun Visor (LH) |
| 7. | Front Room/Map Lamp Assembly | 8. | Rear Seat Belt Center Retractor Finisher | 9. | Assist Grip (With Coat Hanger) |
| Arrow | Front | Δ | Clip | □ | Metal Clip |
| ◦ | Pawl |
