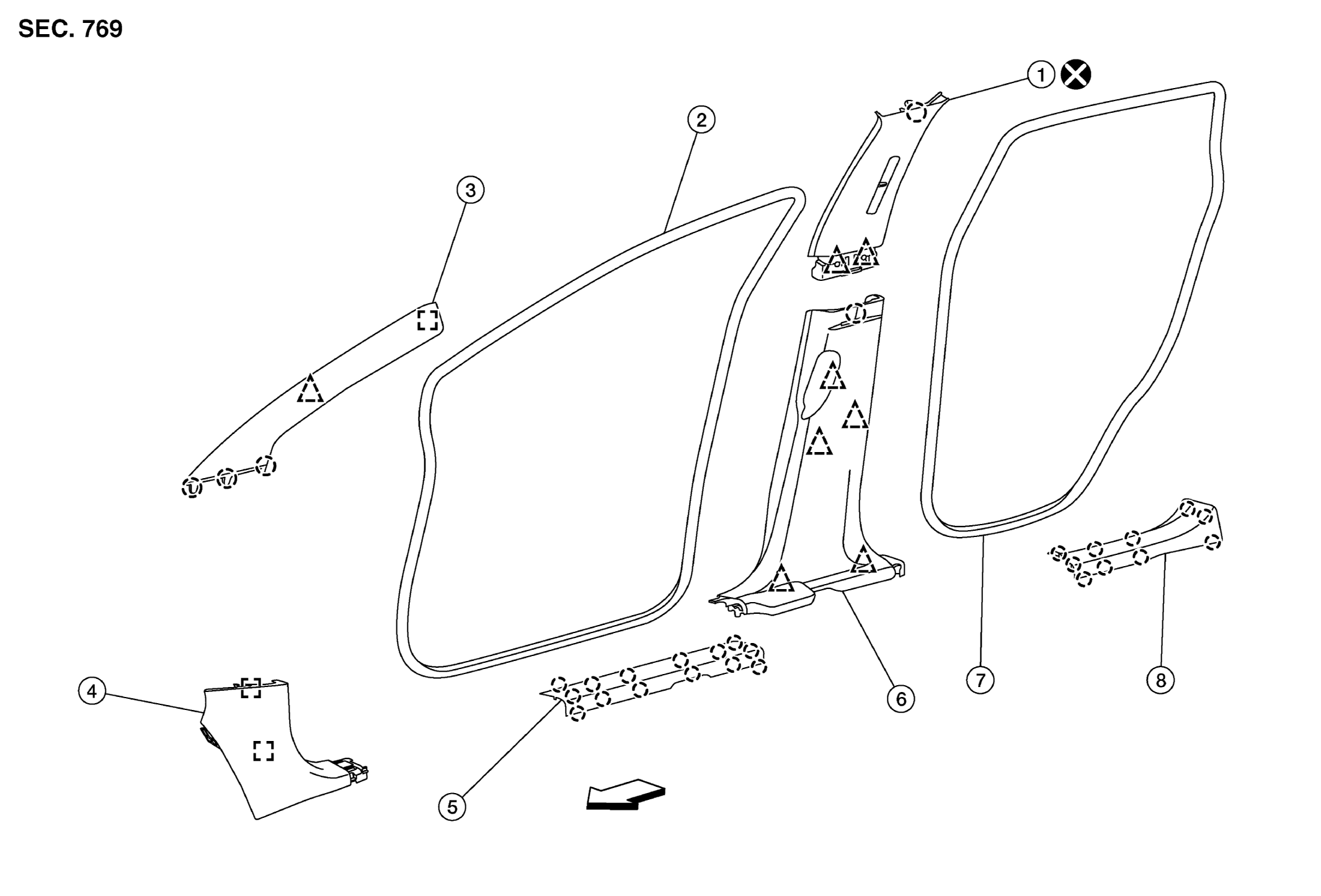

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Center Pillar Upper Finisher |
2. |
Front Door Welt |
3. |
Front Pillar Finisher |
| 4. |
Dash Side Finisher |
5. |
Front Kicking Plate |
6. |
Center Pillar Lower Finisher |
| 7. |
Rear Door Welt |
8. |
Rear Kicking Plate |
Δ |
Clip |
| ◦ |
Pawl |
□ |
Metal Clip |
Arrow |
Front |
