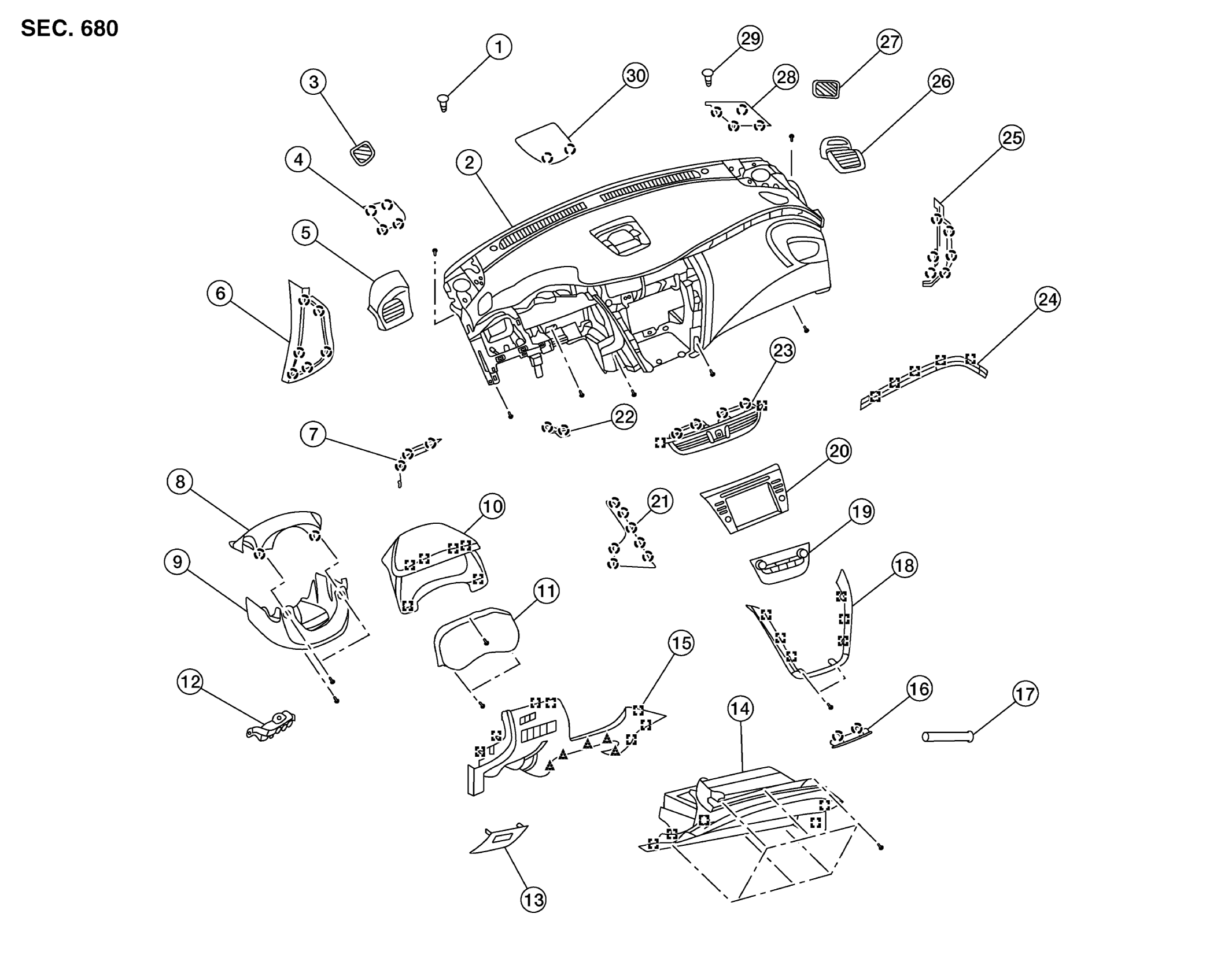

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Sunload Sensor | 2. | Instrument Panel Assembly | 3. | Side Defroster Grille (LH) |
| 4. | Front Speaker Grille (LH) | 5. | Side Ventilator Grille (LH) | 6. | Instrument Side Finisher (LH) |
| 7. | Instrument Finisher A | 8. | Steering Column Upper Cover | 9. | Steering Column Lower Cover |
| 10. | Cluster Lid A | 11. | Combination Meter | 12. | Switch Carrier |
| 13. | Fuse Block Cover | 14. | Glove Box Assembly | 15. | Instrument Lower Panel (LH) |
| 16. | Cluster Lid C | 17. | Damper | 18. | Cluster Lid D |
| 19. | A/C Switch Assembly | 20. | Audio Unit [NISSAN CONNECT (Display Audio System)] / AV control unit [NISSAN CONNECT (Navigation)] | 21. | Instrument Finisher B |
| 22. | Instrument Finisher C | 23. | Center Ventilator Grille | 24. | Instrument Finisher D |
| 25. | Instrument Side Finisher (RH) | 26. | Side Ventilator Grille (RH) | 27. | Side Defroster Grille (RH) |
| 28. | Front Speaker Grille (RH) | 29. | Optical Sensor | 30. | Center Speaker Grille |
| ◦ | Pawl | □ | Metal Clip | Δ | Clip |
