Consult Checking System: Description

WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This vehicle is diagnosed using CONSULT-III plus

When CONSULT is connected with a data link connector (A) equipped on the vehicle side, it will communicate with the control unit equipped in the vehicle and then enable various kinds of diagnostic tests.

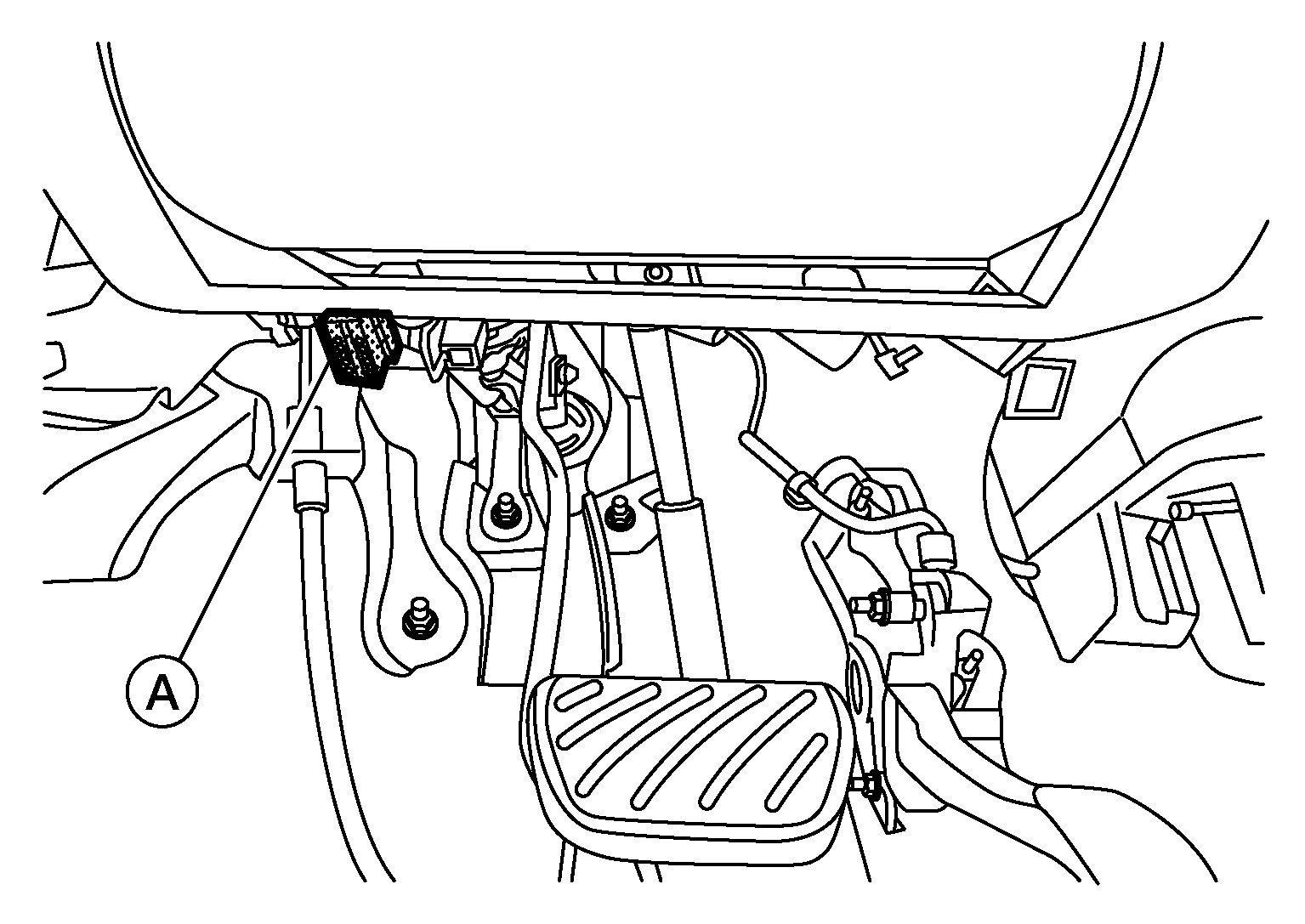

Fig 1: Locating Data Link Connector
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to CONSULT-III plus Software Operation Manual for more information.
