Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

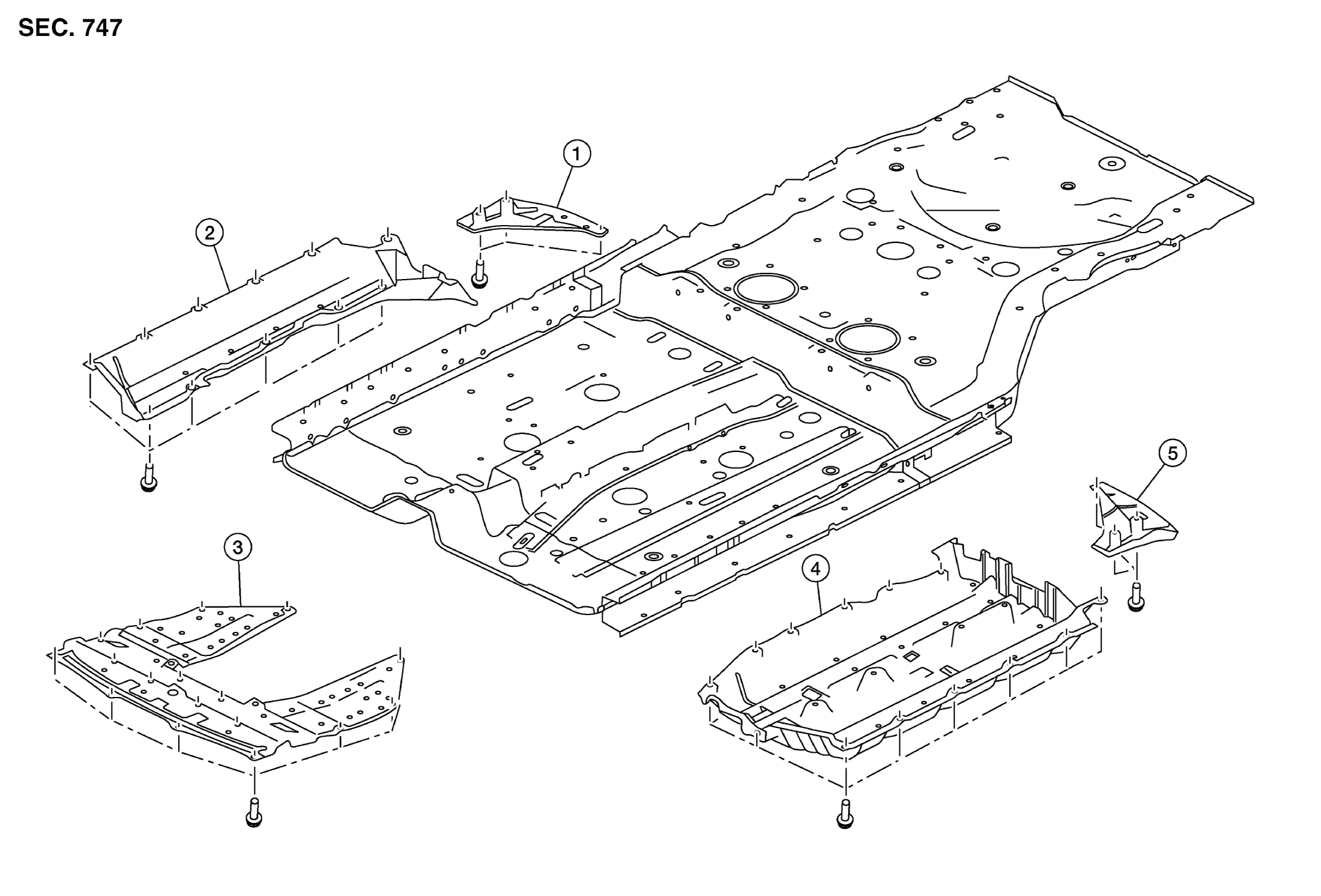

Fig 1: Exploded View Of Under Covers

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear Under Cover (RH)	2.	Floor Under Cover (RH)	3.	Front Under Cover
4.	Floor Under Cover (LH)	5.	Rear Under Cover (LH)
