Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

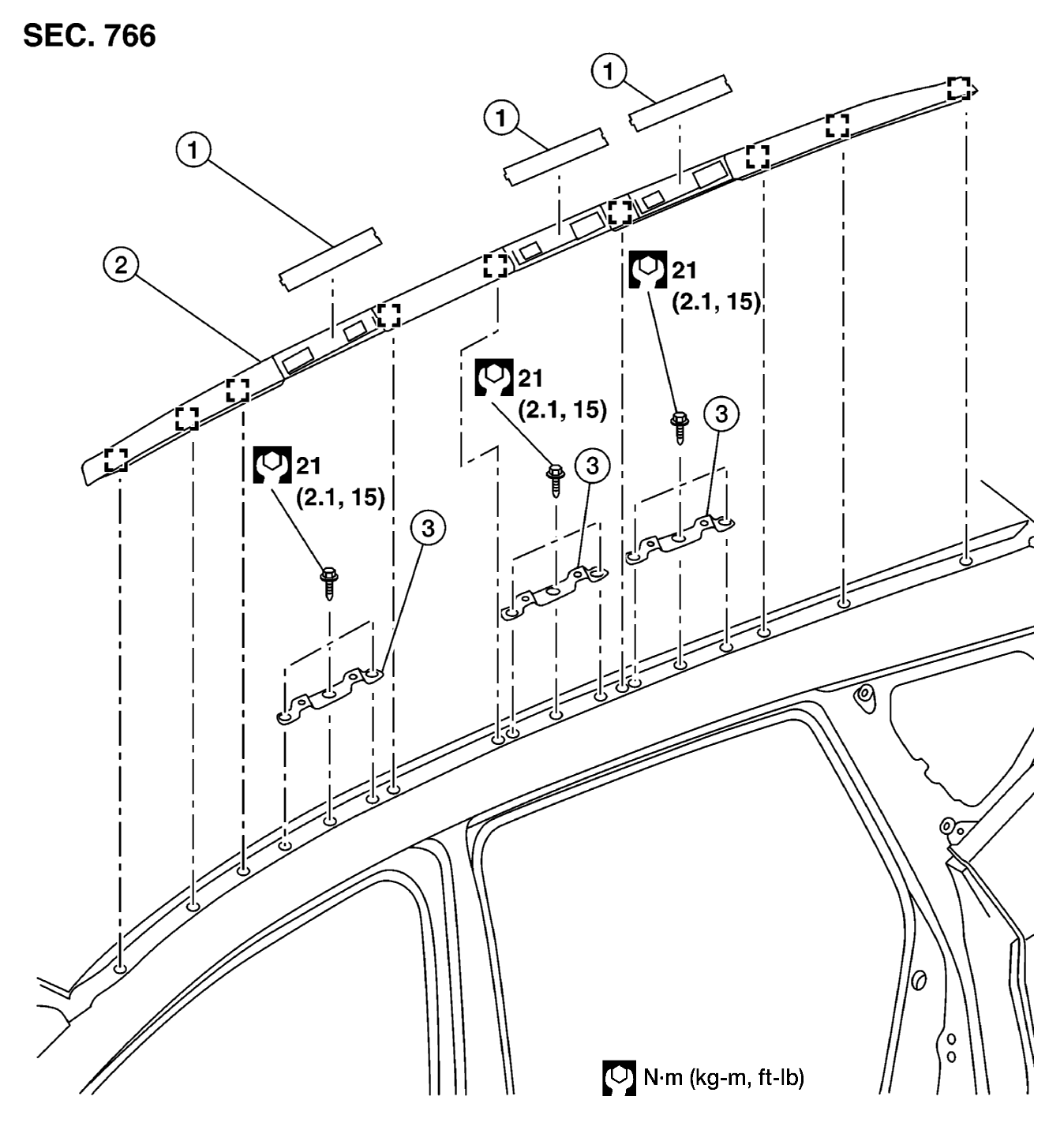

Fig 1: Exploded View Of Roof Rack With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Roof Rack Bolt Cover	2.	Roof Rack	3.	Roof Rack Bracket
□	Metal Clip
