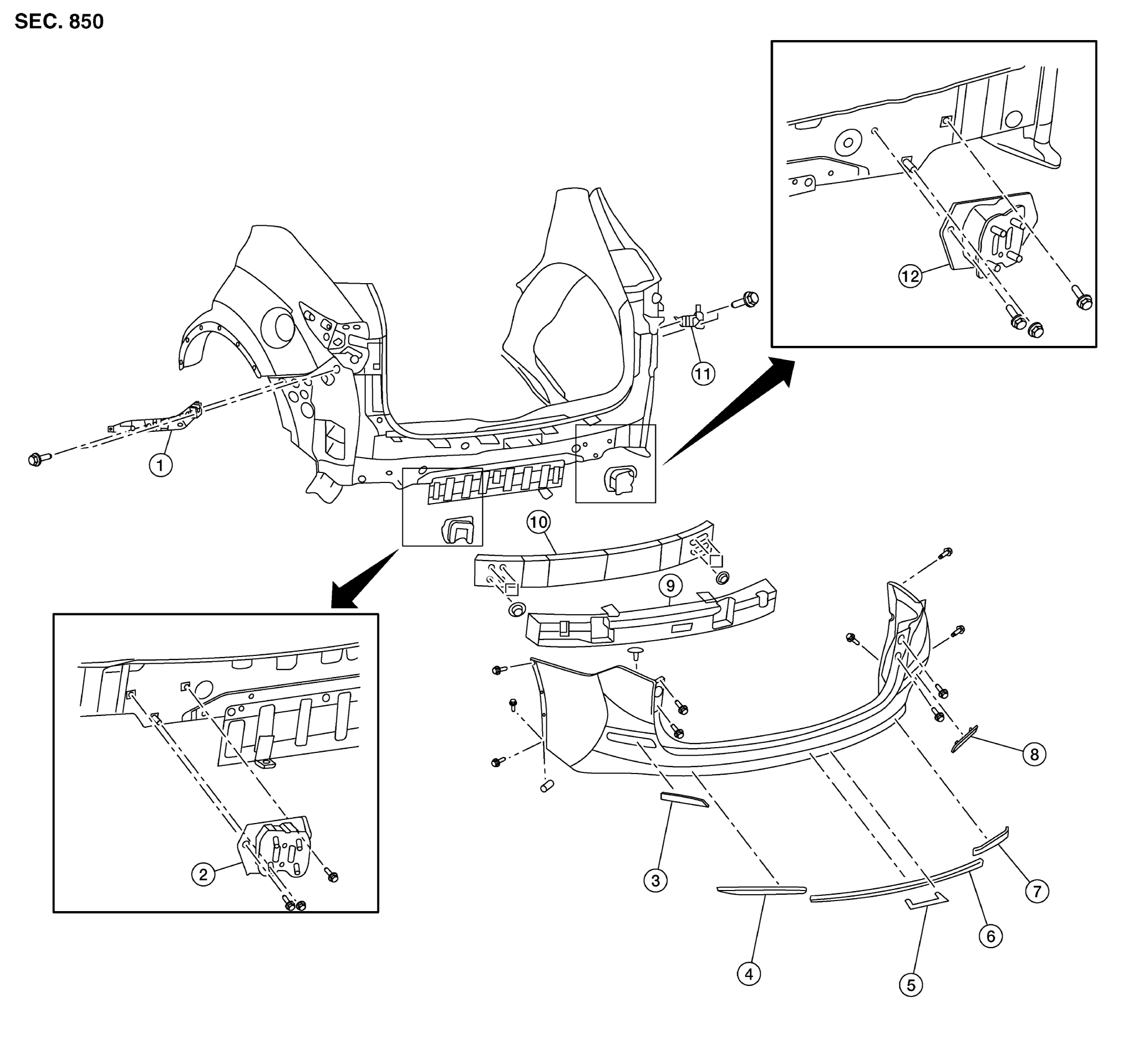

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Rear bumper fascia side bracket (LH) | 2. | Rear bumper reinforcement support (LH) | 3. | Rear bumper fascia reflector (LH) |
| 4. | Rear bumper fascia molding (LH) | 5. | Rear bumper fascia finisher | 6. | Rear bumper fascia molding center |
| 7. | Rear bumper fascia molding (RH) | 8. | Rear bumper fascia reflector (RH) | 9. | Rear energy absorber |
| 10. | Rear bumper reinforcement | 11. | Rear bumper reinforcement support (RH) | 12. | Rear bumper fascia side bracket (RH) |
