Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

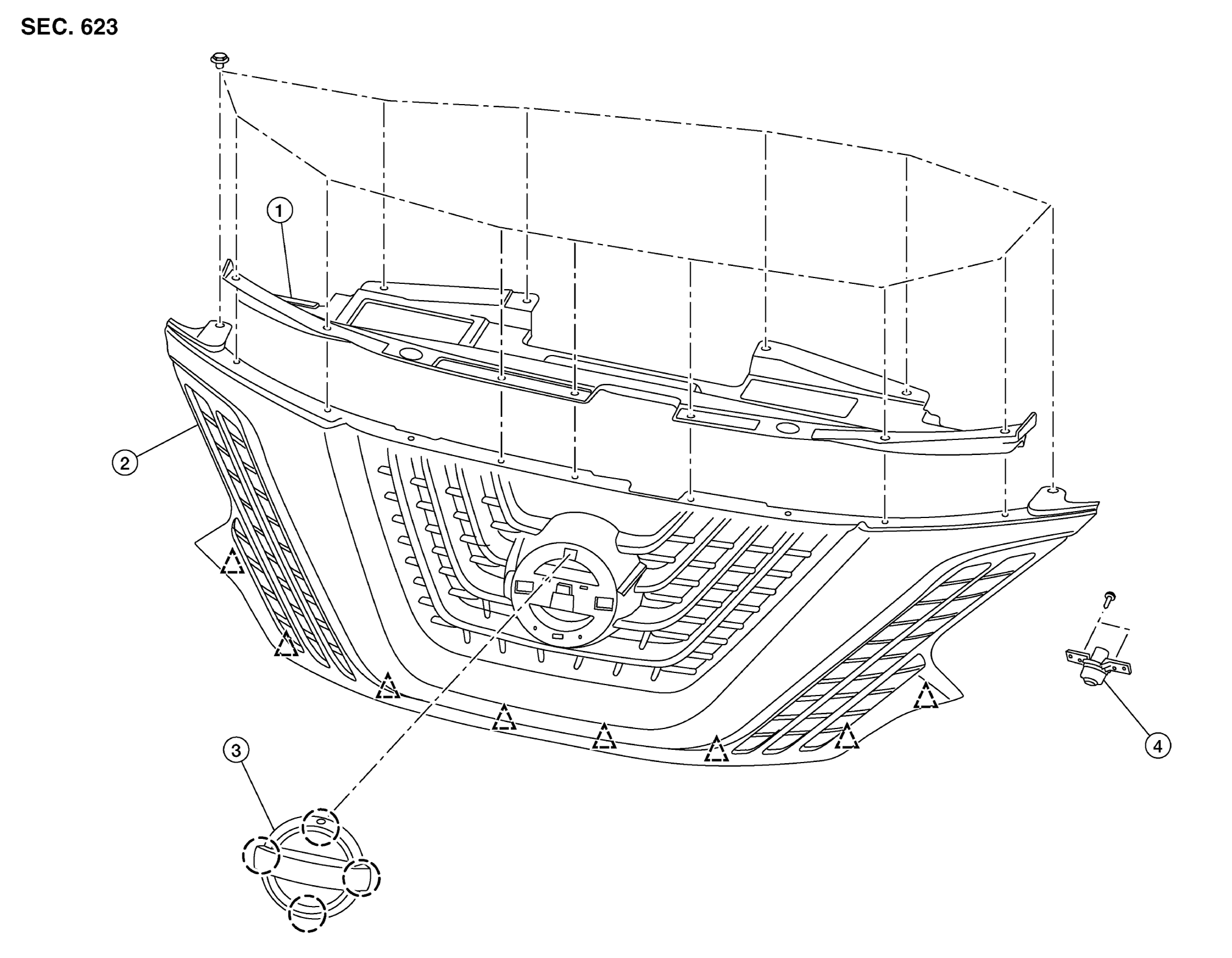

Fig 1: Exploded View Of FRONT GRILLE

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Core Support Cover	2.	Front Grille	3.	Front Emblem
4.	Front Camera (If Equipped)	Δ	Clip	◦	Pawl
