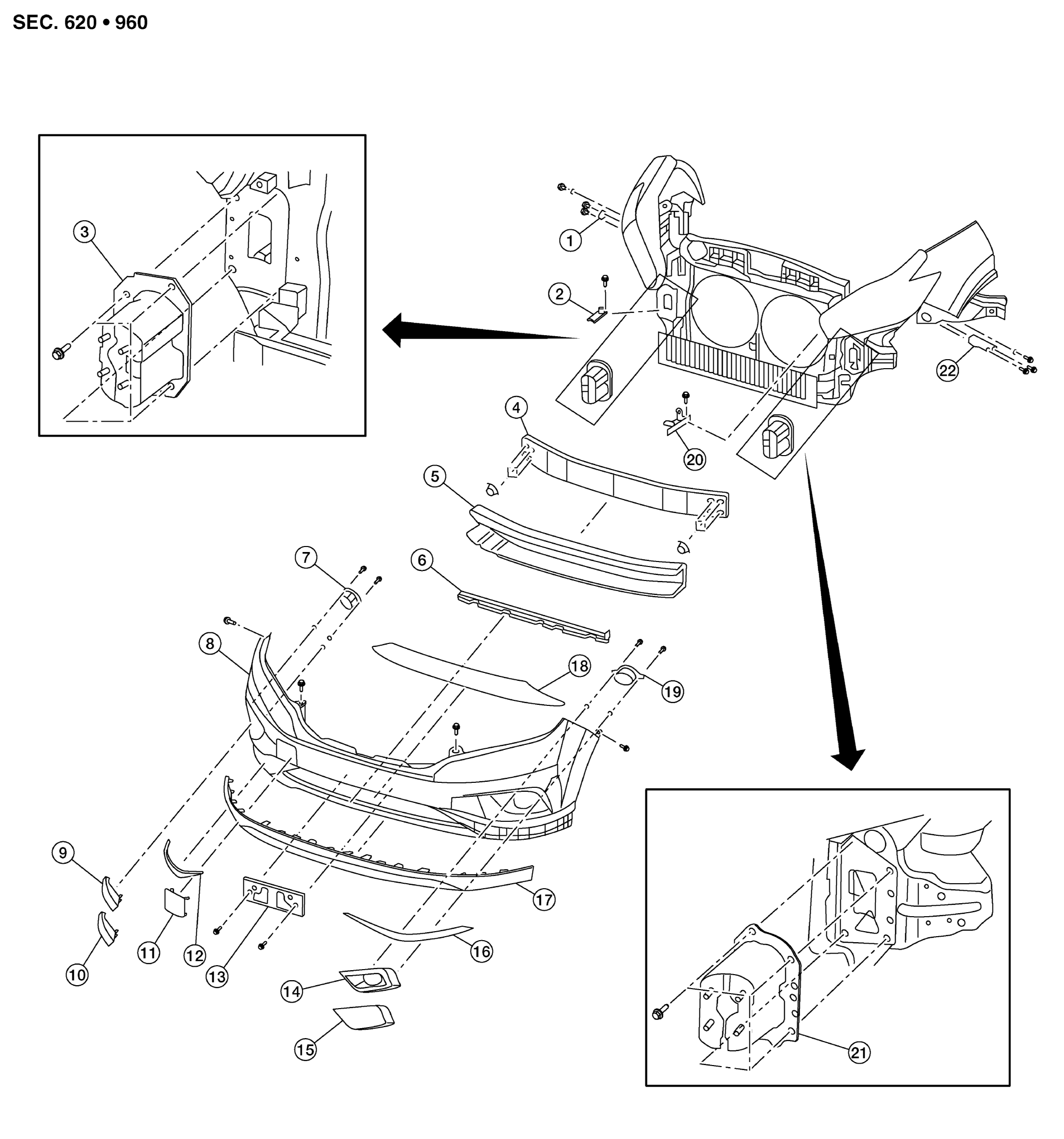

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Front Bumper Fascia Side Bracket (RH) | 2. | Front Bumper Side Retainer (RH) | 3. | Front Bumper Reinforcement Bracket (RH) |
| 4. | Front Bumper Reinforcement | 5. | Front Energy Absorber | 6. | Front Bumper Air Guide |
| 7. | Front Fog Lamp (RH) (If Equipped) | 8. | Front Bumper Fascia | 9. | Front Fog Lamp Finisher (RH) (If Equipped) |
| 10. | Front Bumper Fascia Finisher (RH) (Without Fog Lamp) | 11. | Tow cover | 12. | Front Bumper Fascia Molding (RH) |
| 13. | Front License Plate Bracket | 14. | Front Fog Lamp Finisher (LH) (If Equipped) | 15. | Front Bumper Fascia Finisher (LH) (Without Fog Lamp) |
| 16. | Front Bumper Fascia Molding (LH) | 17. | Front Spoiler | 18. | Front Bumper Lower Grille |
| 19. | Front Fog Lamp (LH) (If Equipped) | 20. | Front Bumper Side Retainer (LH) | 21. | Front Bumper Reinforcement Bracket (LH) |
| 22. | Front Bumper Fascia Side Bracket (LH) |
