Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

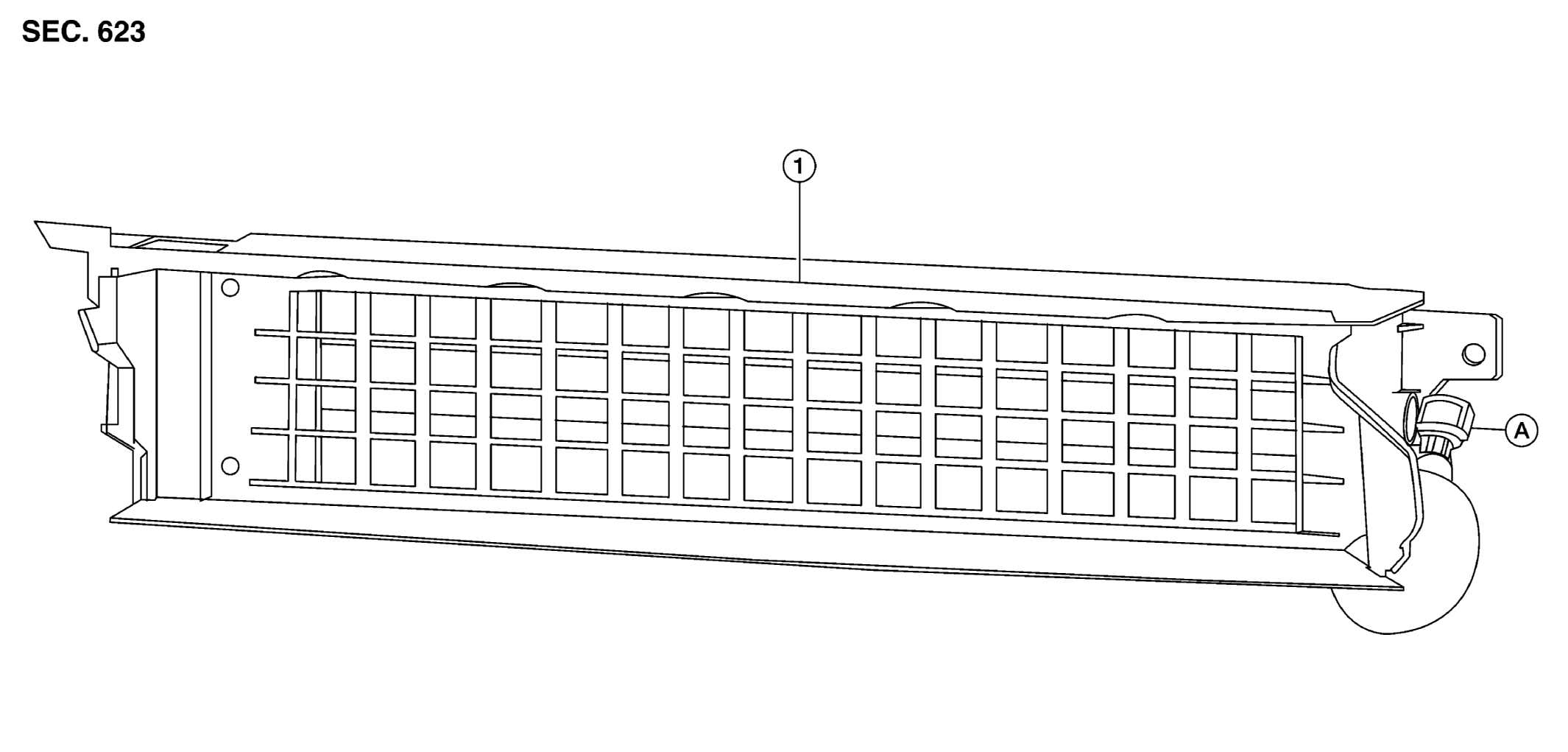

Fig 1: Exploded View Of Active Grille Shutter
GNSALKIA3641ZZ-641Courtesy of NISSAN NORTH AMERICA, INC.
1. Active Grille Shutter A. Active Grille Shutter Harness Connector
