Switch And Their Control Function
WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

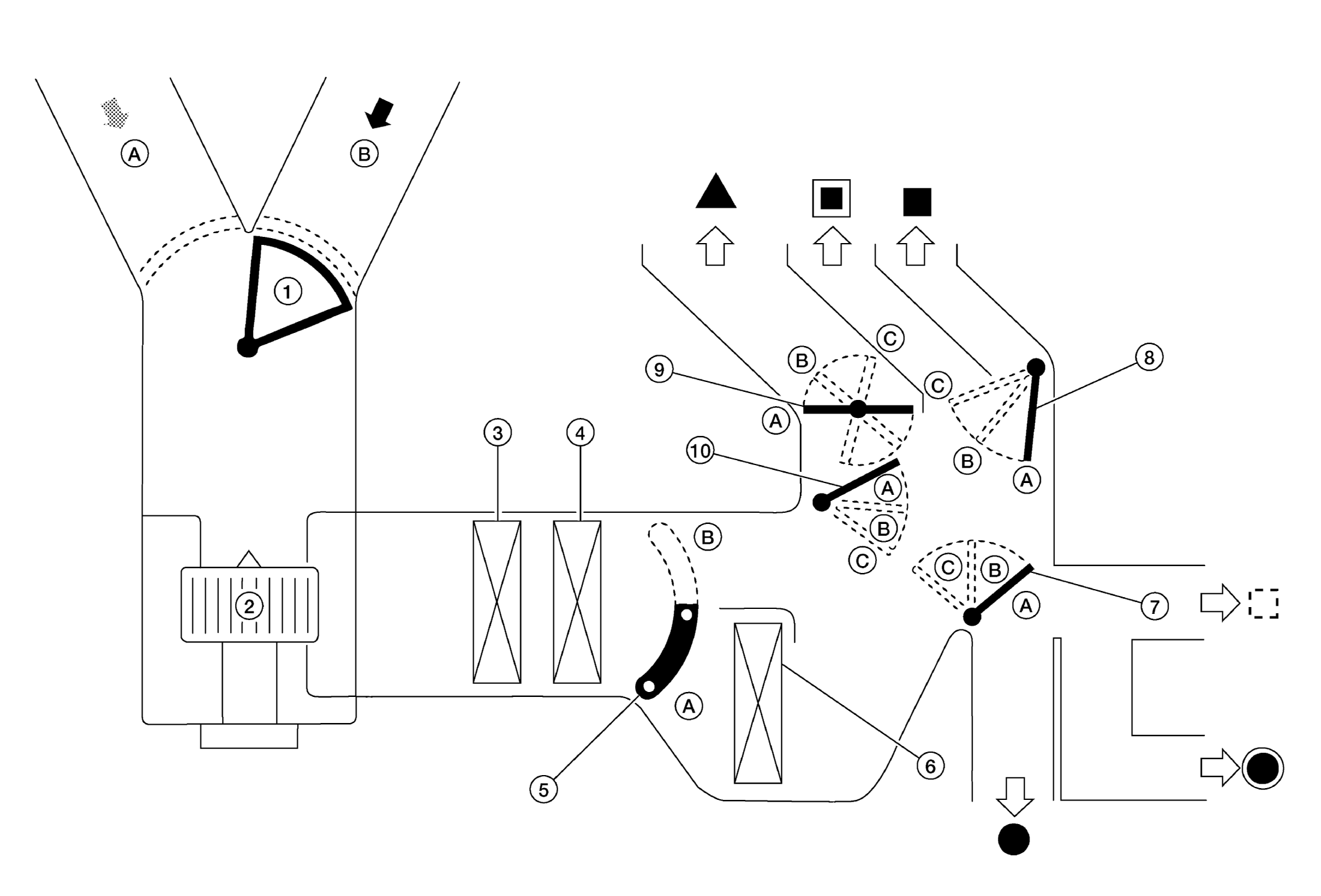

| 1. | Intake Door | 2. | Front Blower Motor | 3. | In-Cabin Microfilter |
| 4. | Front Evaporator | 5. | Air Mix Door (Front) | 6. | Front Heater Core |
| 7. | Foot Door | 8. | Ventilator Door | 9. | Defroster Door |
| 10. | Max. Cool Door |
| Switch Position | Door Position | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Mode Door | Intake Door | Air Mix Door | ||||||||
| Ventilator Door | Max. Cool Door | Defroster Door | Foot Door | Driver Side | Passenger Side | |||||
| AUTO switch | INDICATOR ON | AUTO | ||||||||
| MODE switch | FACE | A | A | A | A | - | - | - | ||
| BI-LEVEL | B | B | A | B | ||||||
| FLOOR | C | C | B | B | ||||||
| FLOOR/DEFROST | C | B | B | B | ||||||
| DEF switch | DEFROST | INDICATOR ON | C | A | C | C | ||||
| Intake switch* | RECIRC | INDICATOR ON | - | - | - | - | A | |||
| FRESH AIR | B | |||||||||
| Temperature control (Driver side) | DUAL switch: OFF | Full cold [18°C (60°F)] |
- | A | ||||||
| 18.5°C - 31.5°C (61°F - 89 °F) |
AUTO | |||||||||
| Full hot [32°C (90°F)] |
B | |||||||||
| Temperature control (Driver side) | DUAL switch: ON | Full cold [18°C (60°F)] |
A | - | ||||||
| 18.5°C - 31.5°C (61°F - 89 °F) |
AUTO | |||||||||
| Full hot [32°C (90°F)] |
B | |||||||||
| Temperature control (Passenger side) | Full cold [18°C (60°F)] |
- | A | |||||||
| 18.5°C - 31.5°C (61°F - 89 °F) |
AUTO | |||||||||
| Full hot [32°C (90°F)] |
B | |||||||||
| ON•OFF switch | OFF | C | C | B | B | A | - | |||
* : Inlet status is displayed by indicator during activation of automatic control
