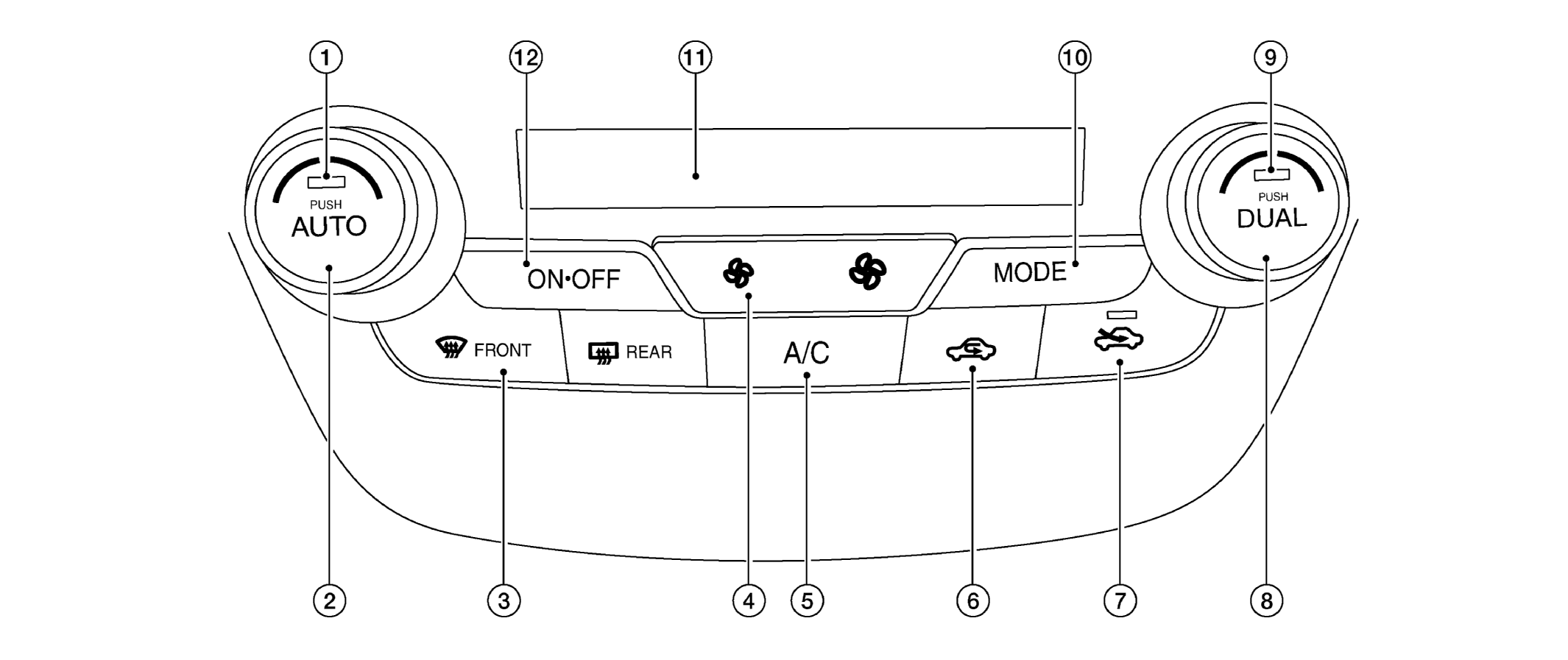

Controller (A/C Switch Assembly)
WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
AUTO Switch |
2. |
Temperature Control Dial (Driver Side) |
3. |
Defroster Switch |
| 4. |
Fan Switch |
5. |
A/C Switch |
6. |
Recirculation Switch |
| 7. |
Fresh Air Switch |
8. |
Temperature Control Dial (Passenger Side) |
9. |
DUAL Switch |
| 10. |
MODE Switch |
11. |
Display |
12. |
ON-OFF switch |
