Exploded View With Torque Specifications

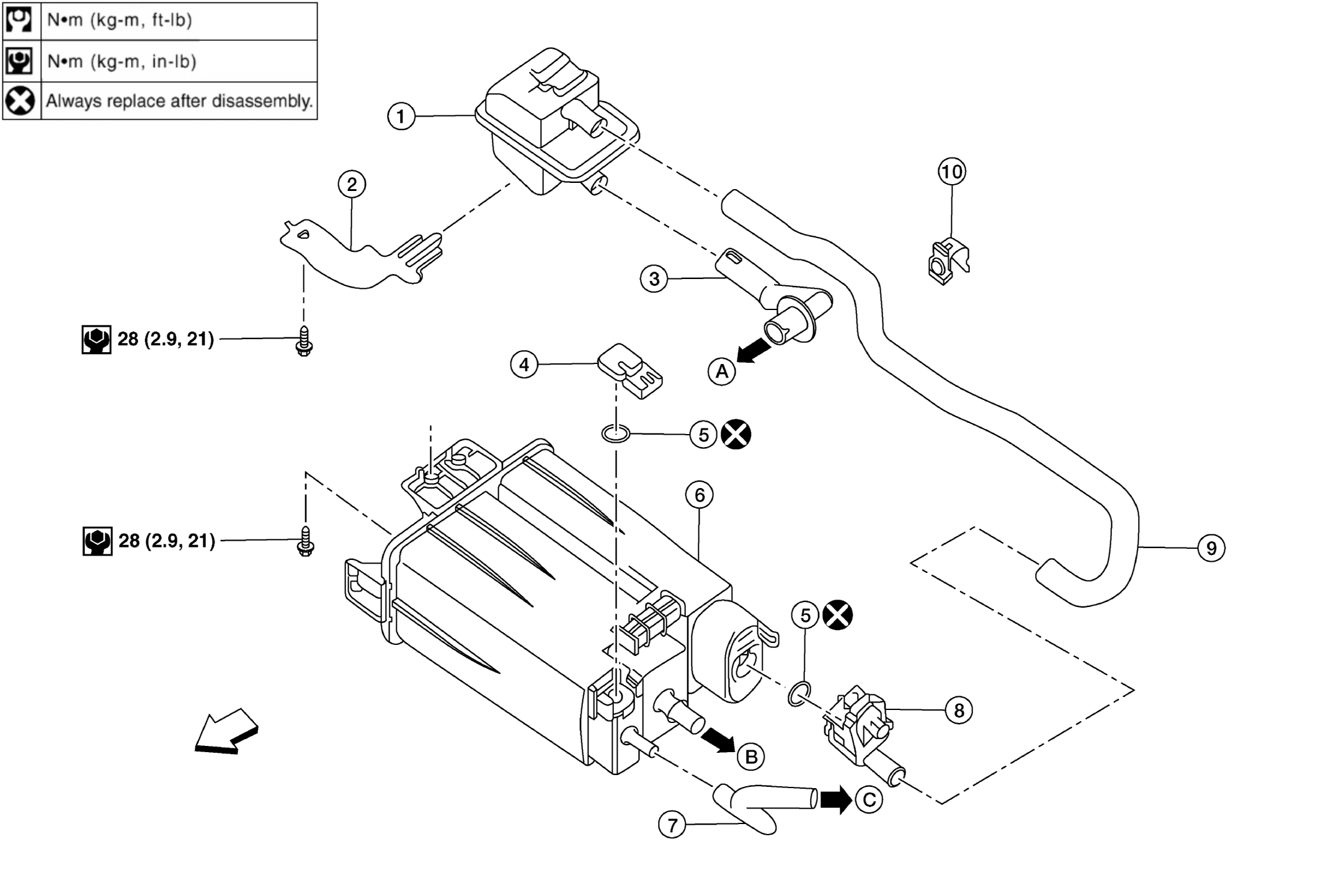

Fig 1: Exploded View Of EVAP Canister With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP canister filter	2.	EVAP filter bracket	3.	EVAP canister filter vent hose
4.	EVAP control system pressure sensor	5.	O-ring	6.	EVAP canister
7.	EVAP canister purge hose	8.	EVAP canister vent control valve	9.	EVAP canister control valve hose
10.	Clip	A.	To vehicle body	B.	To fuel tank
C.	To EVAP tube		Front
