Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Power Control System (IPDM E/R)
>>
System Description
>>
System
>>
Relay Control System
>>
System Diagram
System Diagram

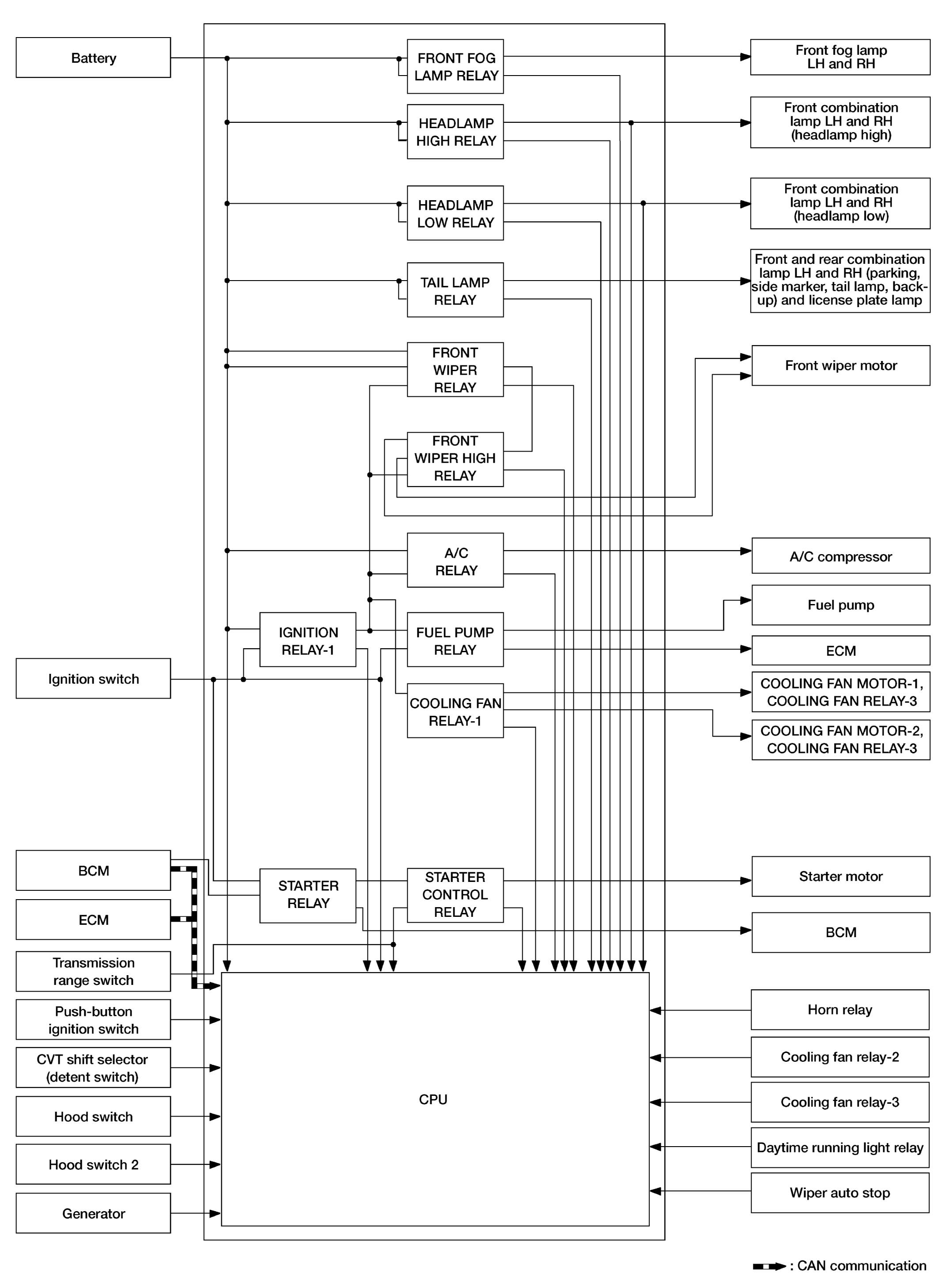

Fig 1: Power Control System (IPDM E/R) System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
