Switch Name And Function

WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

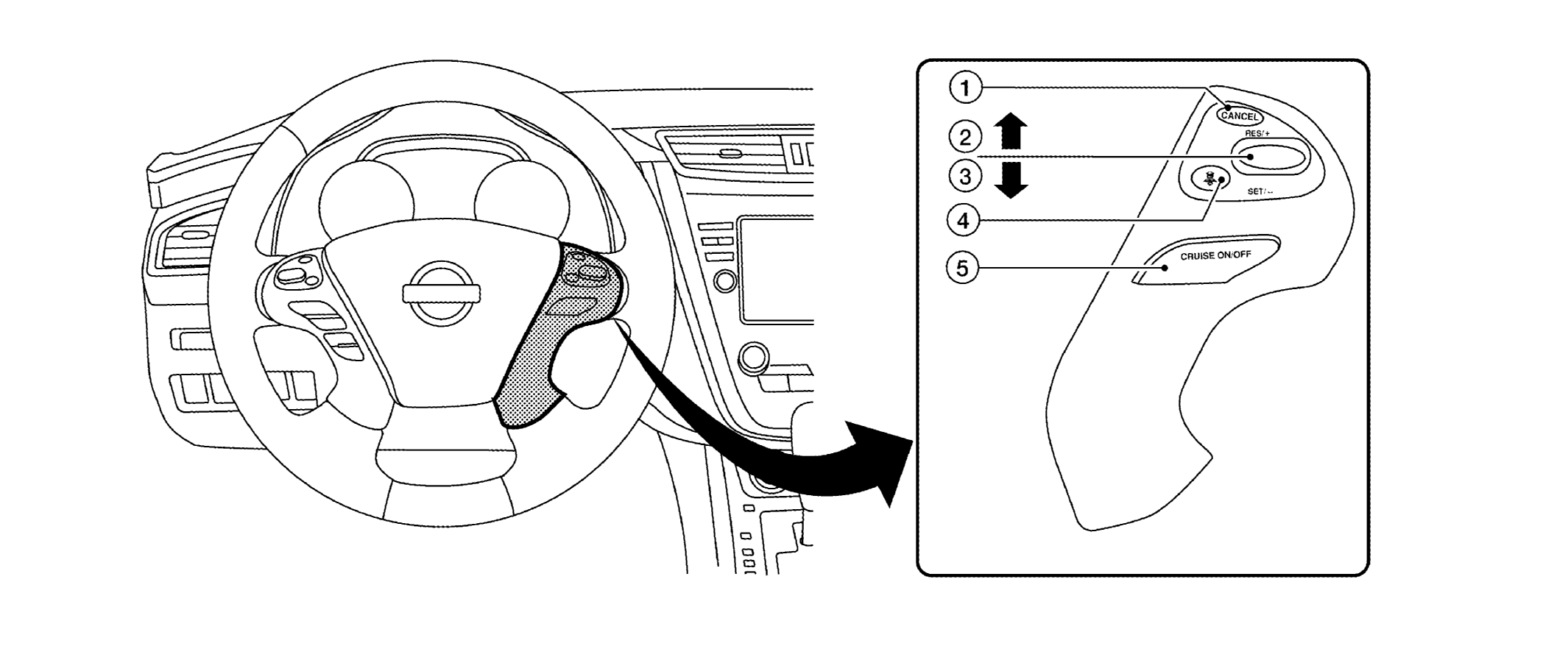

Fig 1: Conventional (Fixed Speed) Cruise Control Mode Function Switch Name And Function

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Description	Function
1.	CANCEL Switch	Deactivates system without erasing set speed
2.	RESUME/+ Switch	Resumes set speed or increases speed incrementally
3.	SET/- Switch	Sets desired cruise speed or reduces speed incrementally
4.	Distance Switch	Changes the vehicle's following distance
5.	MAIN Switch	Master switch to activate the system (Press for more than 1.5 seconds)
