Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

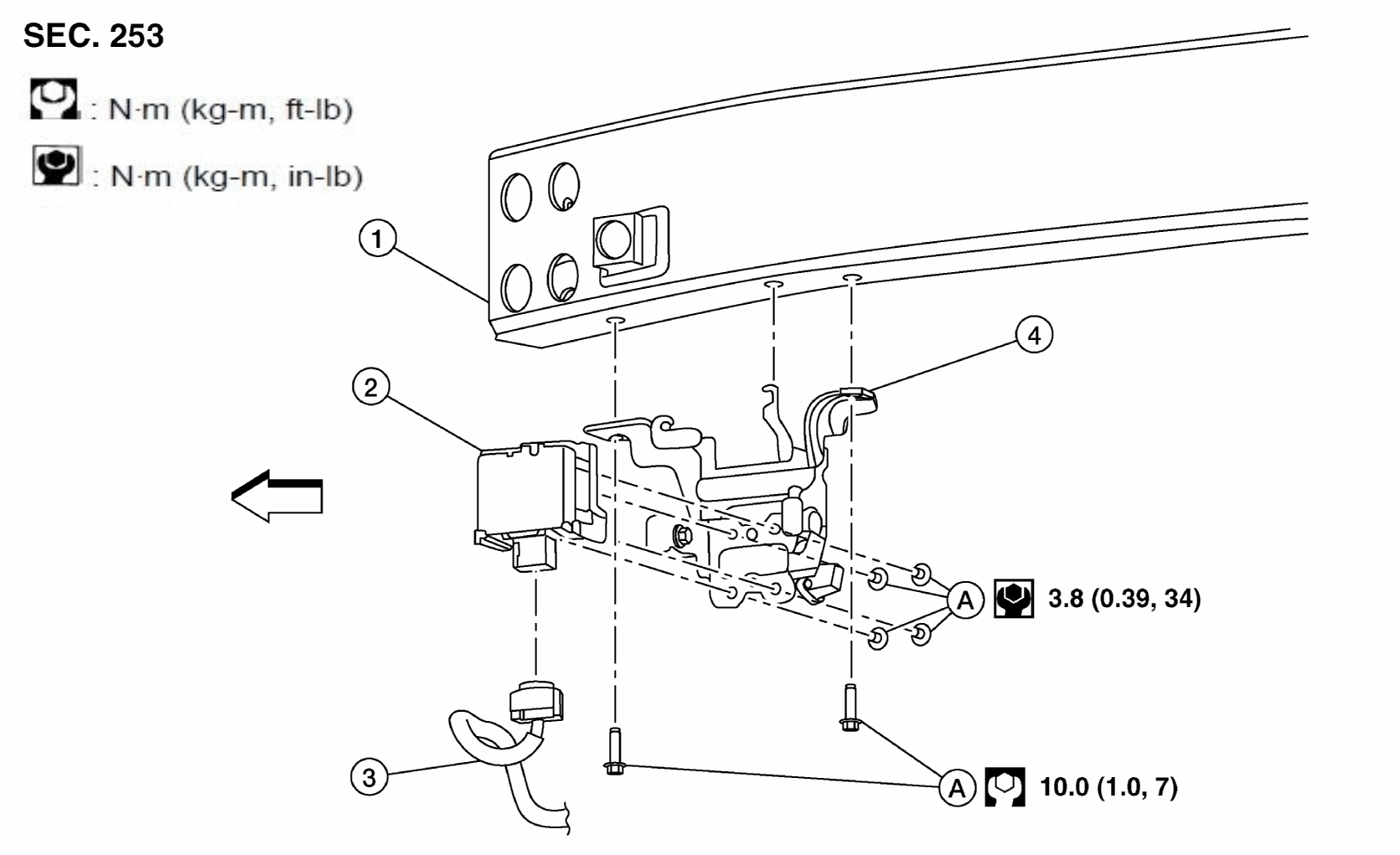

Fig 1: Exploded View Of ICC Sensor With Torque Specifications
GNSALBIA1264ZZ-264Courtesy of NISSAN NORTH AMERICA, INC.
1. Front Bumper Reinforcement 2. ICC Sensor 3. ICC Sensor Harness Connector
4. ICC Sensor Bracket A. Refer to INSTALLATION  Arrow Front
