Required Tools

WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

ICC alignment kit 1-20-2721-1-IF in addition to one of the following:
a) Hunter self-centering wheel adapter (Hunter wheel alignment tool)

b) Special Service Tool kit 1-20-2722-1-IF (kit SCA W/Tire Clamp-ICC Aiming)

The following ICC alignment kit 1-20-2721-1-IF is necessary to perform the ICC sensor alignment:

ICC target board.

Fig 1: Identifying ICC Target Board Positions
Courtesy of NISSAN NORTH AMERICA, INC.
1. Position 1, with top tilted 2° toward vehicle (1).
2. Position 2, vertical (2).
3. Position 3, with top tilted 2° away from vehicle (3).
Hunter self-centering wheel adapter (1) [shown with laser assembly (2) installed] (Hunter alignment rack head may be substituted).

Fig 2: Identifying Self-Centering Wheel Adapter And Laser Assembly
Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:
Retailers that are not equipped with a Hunter self-centering wheel adapter will require the following kit:

Part No. 1-20-2722-1-IF (kit SCA W/Tire Clamp-ICC Aiming)

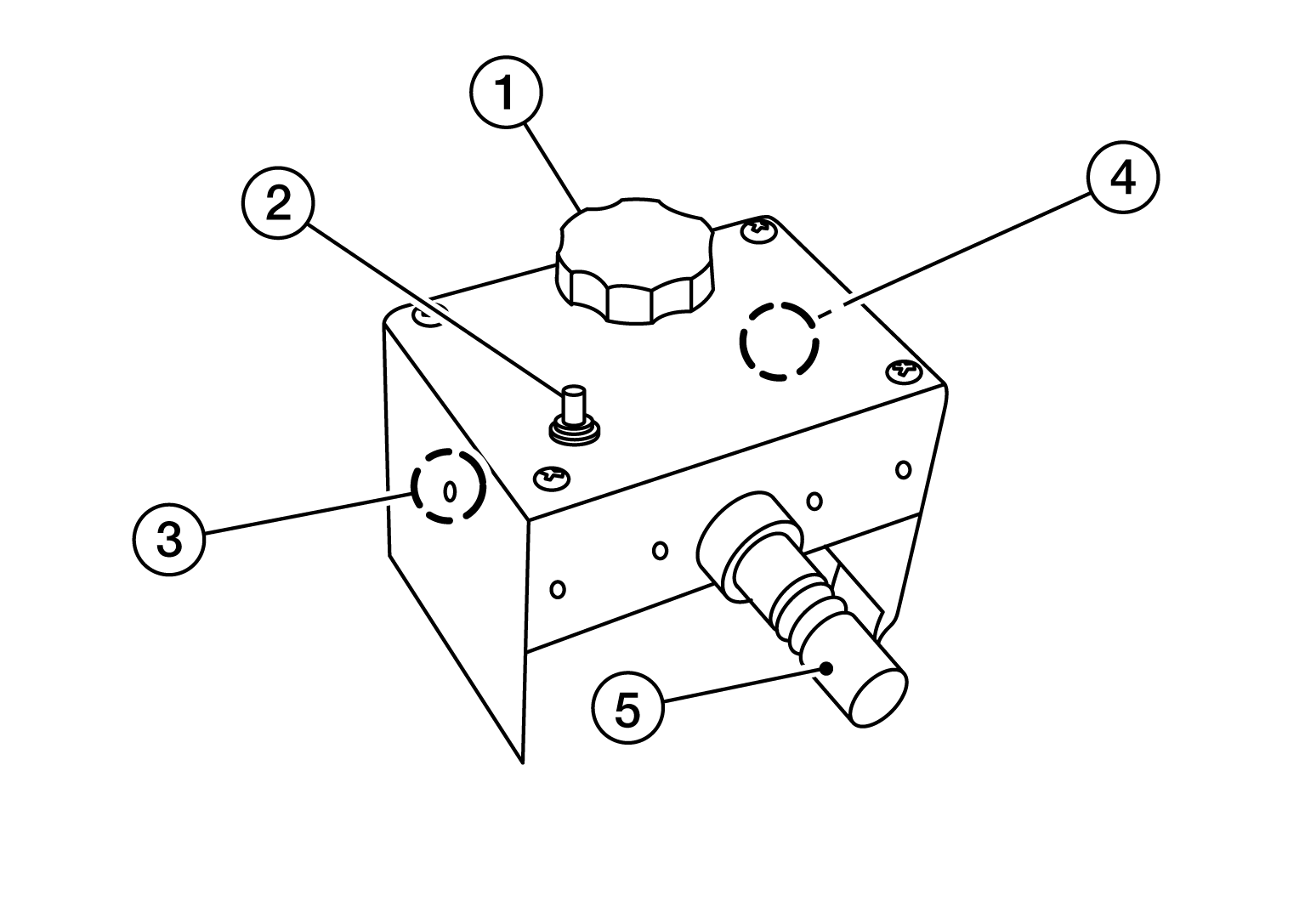

Laser assembly (with bi-directional laser beam) as shown in the illustration below.
1. Tightening knob (1)
2. Power ON/OFF button (2)
3. Front laser beam opening (3)
4. Rear laser beam opening (4)
5. Attaching shaft (5)
Fig 3: Identifying Laser Assembly Related Components
Courtesy of NISSAN NORTH AMERICA, INC.

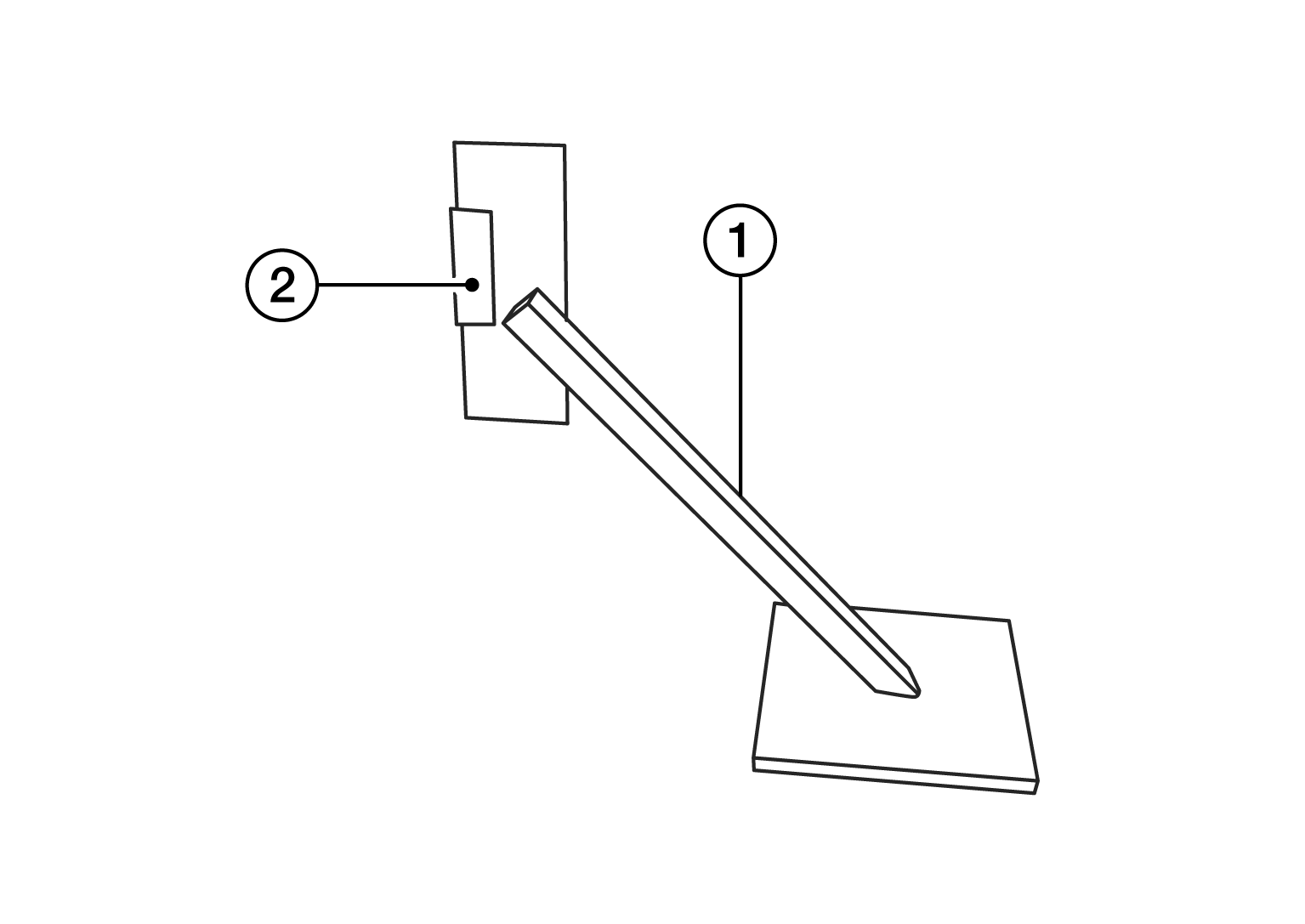

Stationary target as shown in the illustration below.
1. Stationary target (1)
2. Laser signal reception plate (2)
Fig 4: Identifying Stationary Target And Laser Signal Reception Plate
Courtesy of NISSAN NORTH AMERICA, INC.
Distance chain (not shown).
