ICC Sensor Alignment: Preparation

WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

ADVANCE PREPARATION FOR ICC SENSOR ALIGNMENT PROCEDURE
1. Adjust all tire pressure to the specified value.
2. Empty the vehicle. (Remove any luggage from the passenger compartment, luggage room, etc.)
3. Shift the selector lever to "P" position, and release the parking brake.
4. Fully fill the fuel tank, and then check that the coolant and oils are filled up to correct level.
5. Clean off the front of the ICC sensor.
  NOTE:
  The ICC sensor is located behind the fascia and it is not exposed to the elements. Therefore it should not require any cleaning.

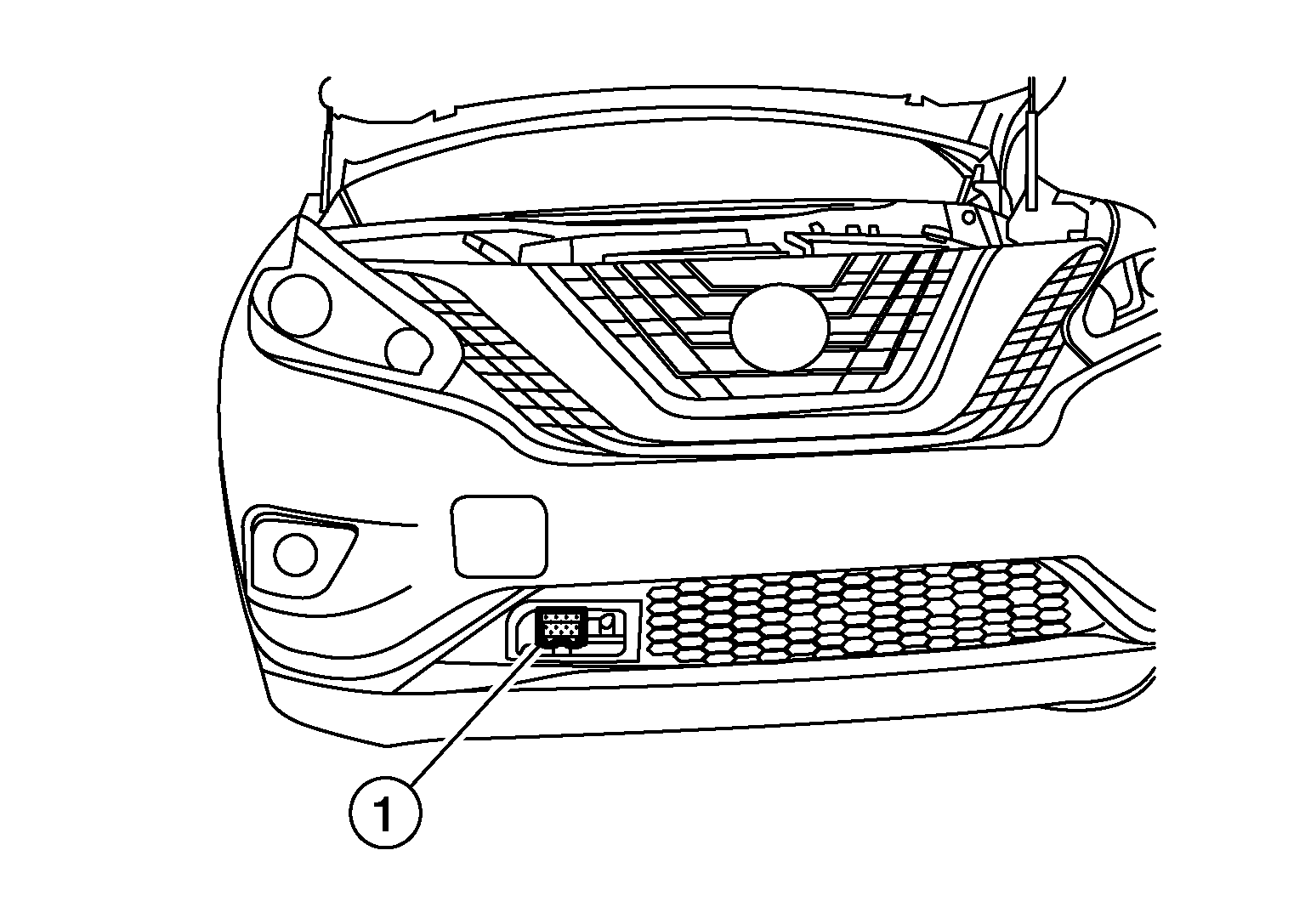

  Fig 1: Locating ICC Sensor
  Courtesy of NISSAN NORTH AMERICA, INC.

  1 ICC Sensor
Refer to VEHICLE SET UP .
