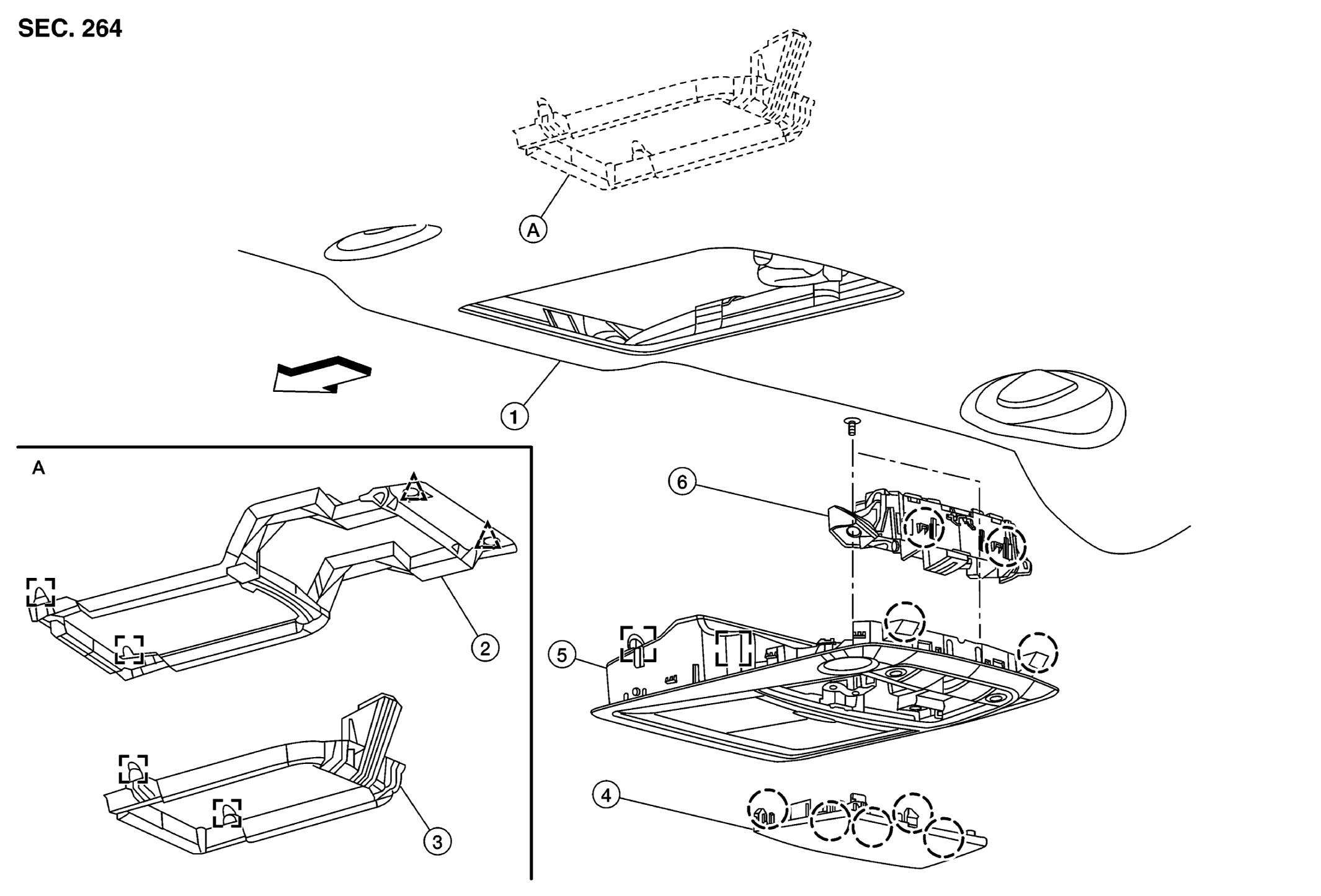

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Headlining |
2. |
Front Room/Map Lamp Assembly Bracket (Without Panoramic Roof Glass) |
3. |
Front Room/Map Lamp Assembly Bracket (With Panoramic Roof Glass) |
| 4. |
Panoramic Roof Switch Finisher |
5. |
Front Room/Map Lamp Assembly |
6. |
Map lamp |
| ◦ |
Pawl |
Δ |
Clip |
□ |
Metal Clip |
| Arrow |
Front |
|
|
|
|
