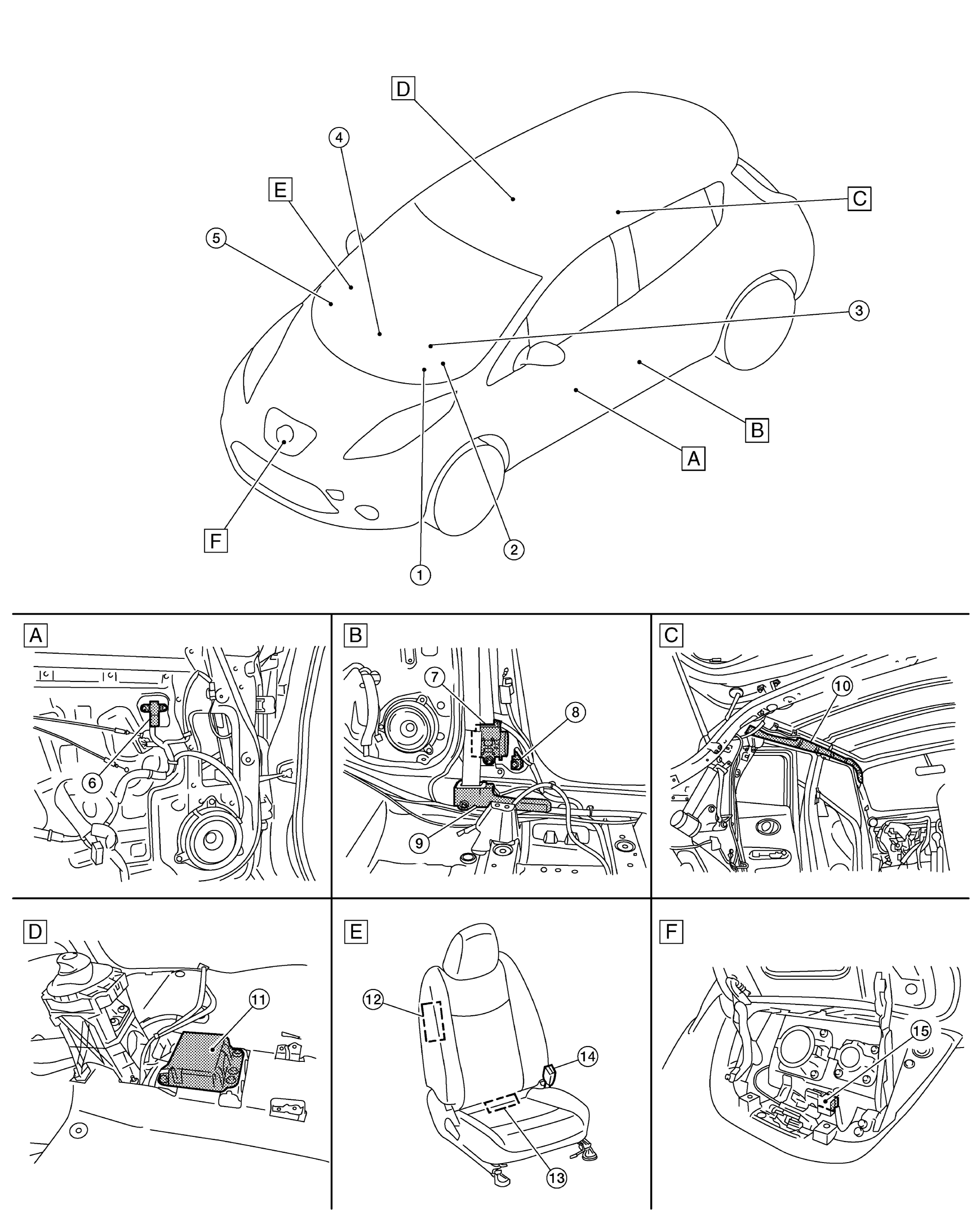

Component Parts Location
| A. | View with door finisher removed | B. | Behind center pillar lower garnish | C. | View with headlining assembly removed |
| D. | View with center console assembly removed | E. | Passenger seat | F. | View with charge port lid open |
| No. | Component | Function |
|---|---|---|
| 1. | Combination meter | Refer to AIR BAG WARNING LAMP . |
| 2. | Combination switch (spiral cable) | Refer to SPIRAL CABLE . |
| 3. | Driver air bag module | Refer to DRIVER AIR BAG MODULE . |
| 4. | Front passenger air bag OFF indicator | Turns the front passenger air bag OFF indicator lamp ON when the front passenger seat is occupied by a child or a child-seat |
| 5. | Front passenger air bag module | Refer to PASSENGER AIR BAG MODULE . |
| 6. | Front door satellite sensor LH | Refer to SATELLITE SENSOR . |
| 7. | Front LH seat belt pre-tensioner | Refer to SEAT BELT PRE-TENSIONER WITH LOAD LIMITER . |
| 8. | Front side air bag satellite sensor LH | Refer to SATELLITE SENSOR . |
| 9. | Lap seat belt pre-tensioner (LH) | Refer to DOUBLE PRE-TENSIONER SEAT BELT . |
| 10. | LH side curtain air bag module | Refer to CURTAIN AIR BAG MODULE . |
| 11. | Air bag diagnosis sensor unit | Refer to AIR BAG DIAGNOSIS SENSOR UNIT . |
| 12. | RH side curtain air bag module | Refer to SIDE AIR BAG INFLATOR . |
| 13. | Occupant classification system control unit | Transmits the passenger seat status (occupied or empty) to air bag diagnosis sensor unit. It is installed in the passenger seat cushion. Refer to COMPONENT PARTS LOCATION for detailed installation location. |
| 14. | Seat belt buckle switch (RH) | Controls deployment timing depending on the seat belt condition that is fastened or unfastened. It is installed in the seat belt buckle. Refer to EXPLODED VIEW for detailed installation location. |
| 15. | Crash zone sensor | Refer to CRASH ZONE SENSOR . |
