Component Parts Location

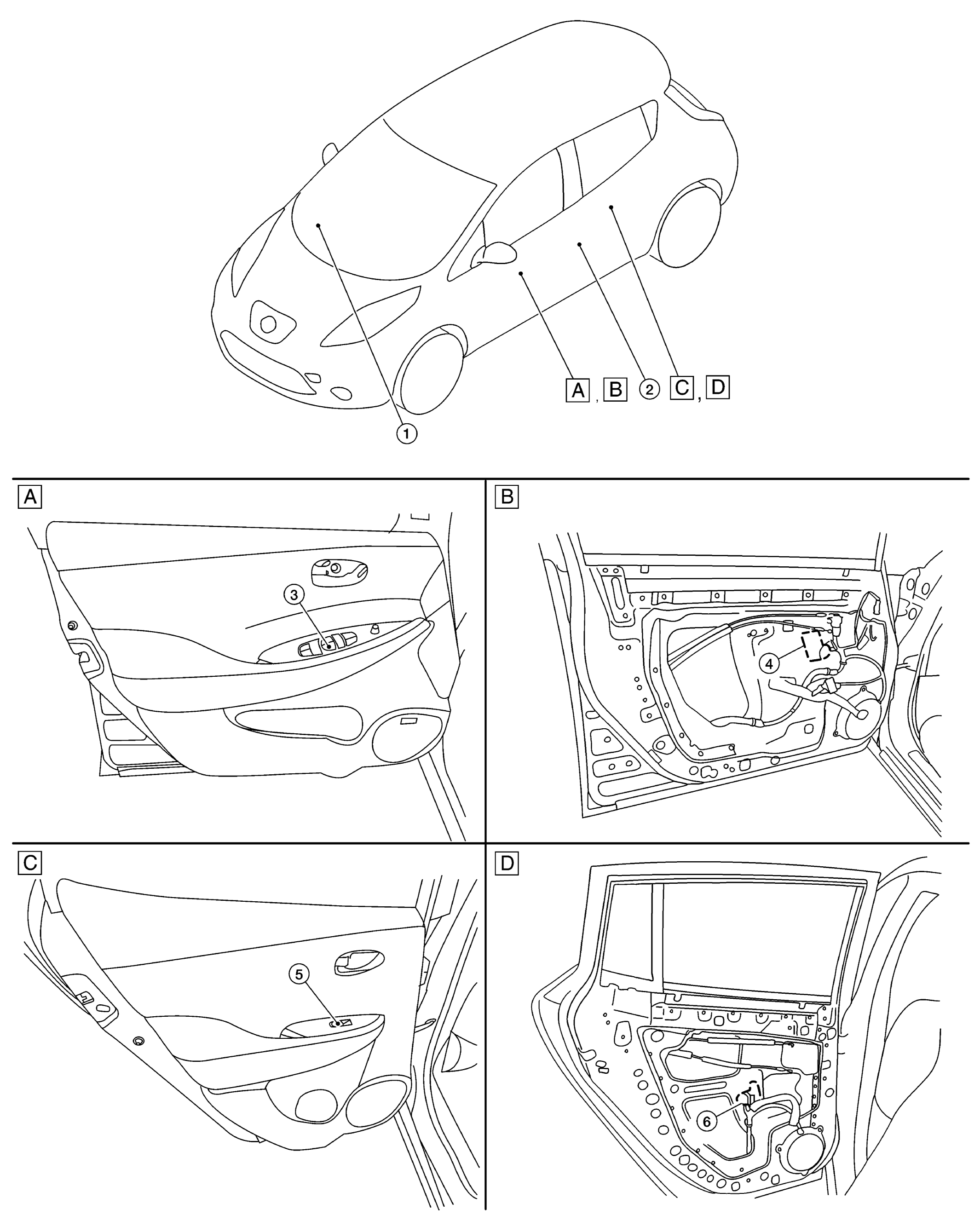

Fig 1: Power Window Control System Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

A.	Front door finisher LH	B.	View with front door finisher removed	C.	Rear door finisher LH
D.	View with rear door finisher removed

No.	Component parts	Function
1.	BCM	Supplies power supply to power window switches Controls retained power Refer to COMPONENT PARTS LOCATION for detailed installation location.
2.	Front door switch LH	Inputs door open/close condition to BCM Refer to COMPONENT PARTS LOCATION for detailed installation location.
3.	Main power window and door lock/unlock switch	Refer to MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH .
4.	Front power window motor LH	Refer to POWER WINDOW MOTOR .
5.	Rear power window switch LH	Refer to POWER WINDOW SWITCH .
6.	Rear power window motor LH	Refer to POWER WINDOW MOTOR .
