Exploded View With Torque Specifications

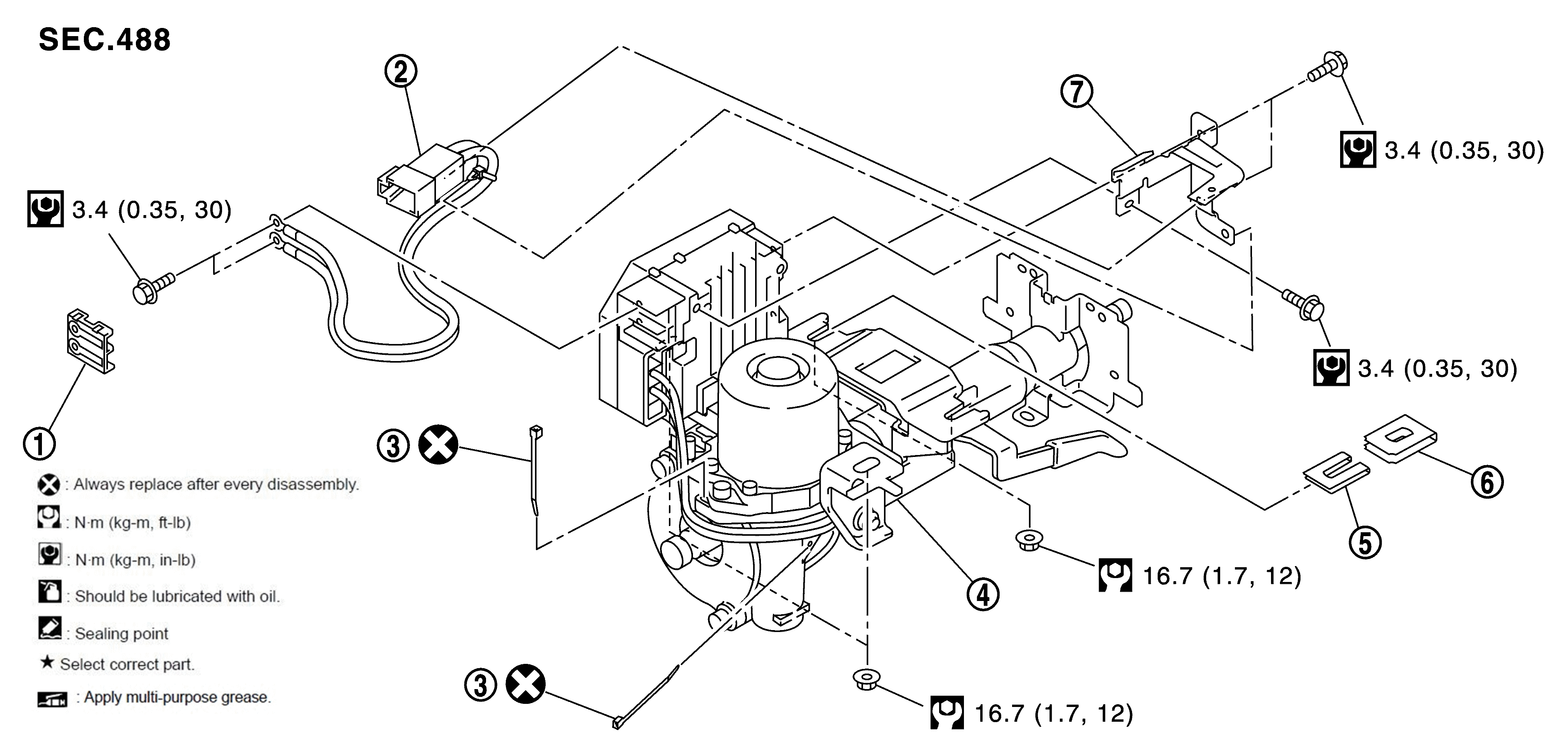

Fig 1: Exploded View Of Steering Column With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cover	2.	Sub-harness	3.	Band
4.	Steering column assembly	5.	Slide plate (inner)	6.	Slide plate (outer)
7.	Bracket
