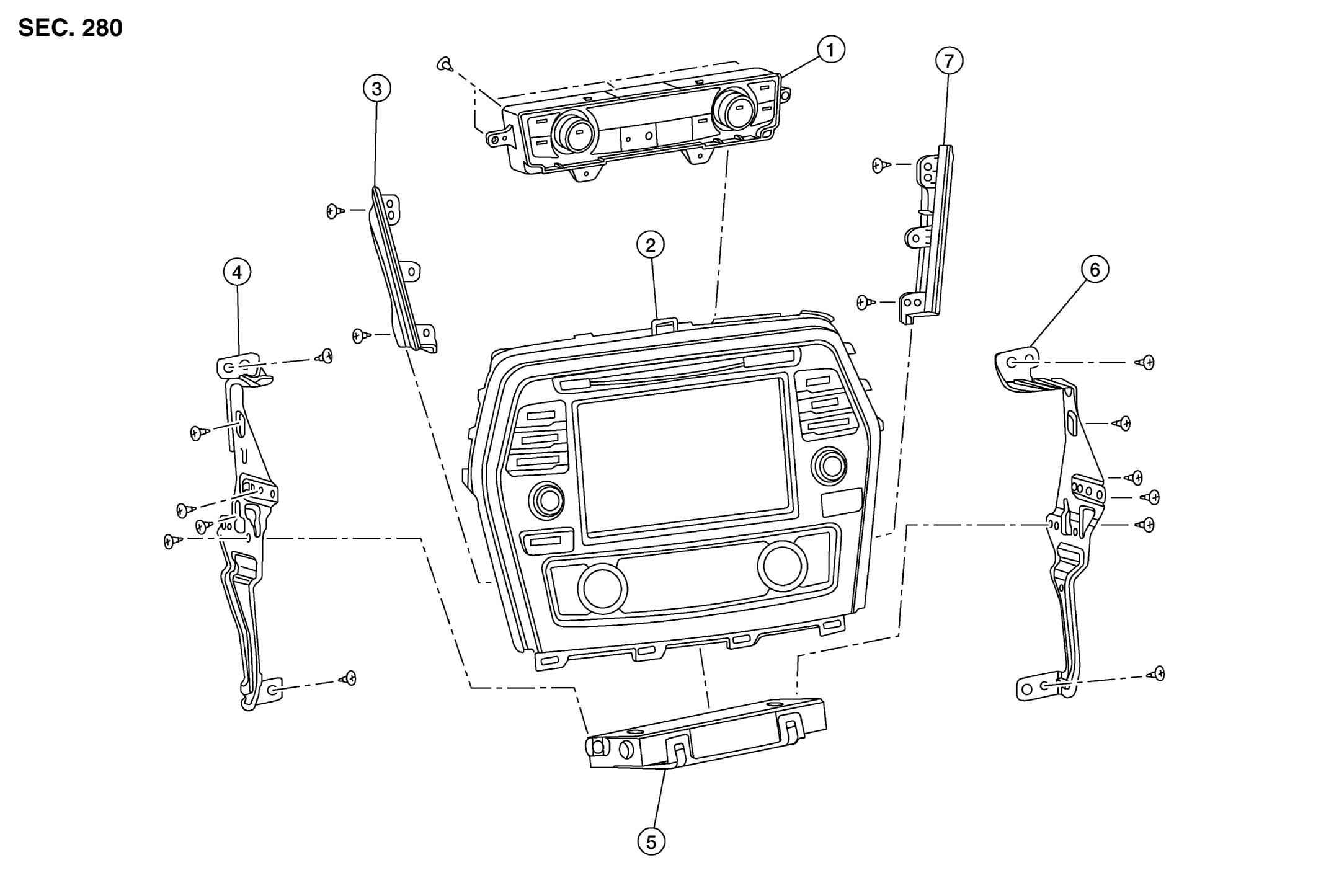

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
A/C switch assembly |
2. |
AV control unit |
3. |
Audio unit finisher (LH) |
| 4. |
Audio unit bracket (LH) |
5. |
A/C auto amp. |
6. |
Audio unit bracket (RH) |
| 7. |
Audio unit finisher (RH) |
|
|
|
|
