Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

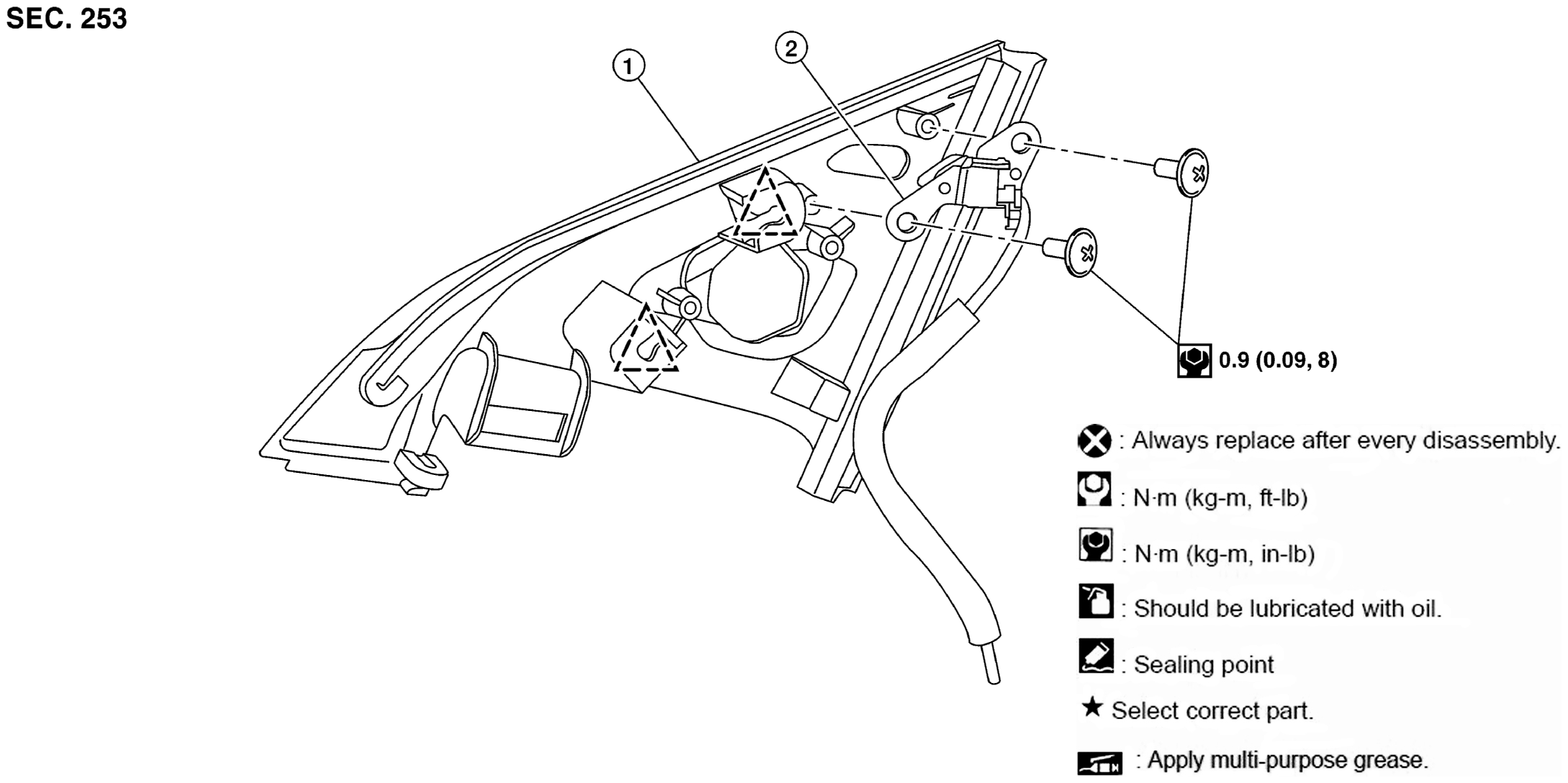

Fig 1: Exploded View Of Blind Spot Warning Indicator With Torque Specifications
GNSAWOIA0130ZZ-130Courtesy of NISSAN NORTH AMERICA, INC.
1. Door mirror corner finisher 2. Blind Spot Warning indicator SANKAKU-H Clip
