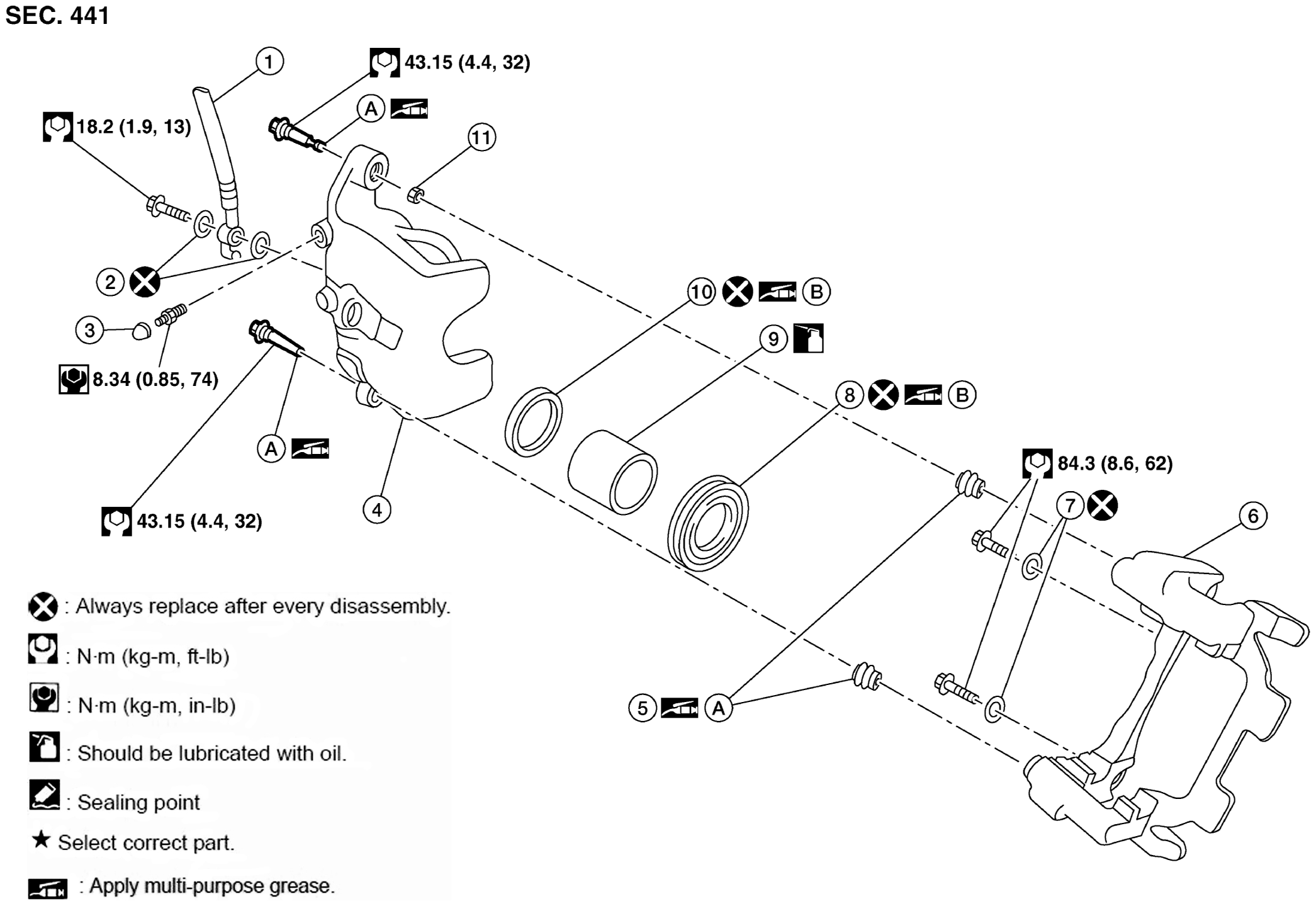

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Brake hose |
2. |
Copper sealing washer |
3. |
Bleeder cap |
| 4. |
Brake caliper body |
5. |
Sliding pin boot |
6. |
Torque member |
| 7. |
Washers |
8. |
Piston boot |
9. |
Piston |
| 10. |
Piston seal |
11. |
Bushing |
|
|
| A. |
Nightclub Rx-2 |
B. |
Rubber grease |
|
|
 |
Apply brake fluid. |
|
|
|
|
