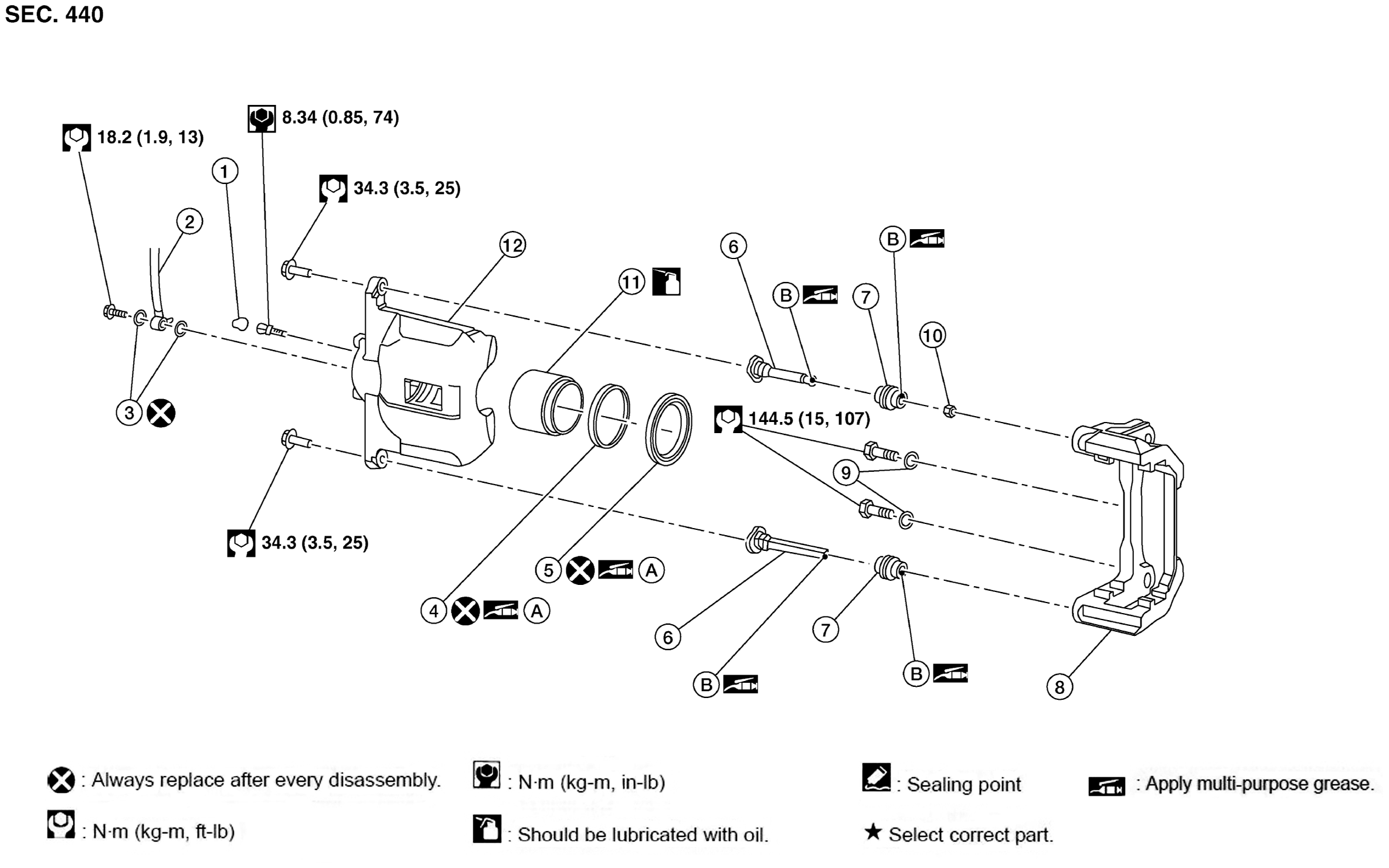

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Bleeder cap |
2. |
Brake hose |
3. |
Copper sealing washers |
| 4. |
Piston seal |
5. |
Piston boot |
6. |
Slide pin |
| 7. |
Slide pin boot |
8. |
Torque member |
9. |
Washer |
| 10. |
Bushing |
11. |
Piston |
12. |
Brake caliper body |
| A. |
Rubber grease |
B. |
Niglube Rx-2 |
|
 |
Apply brake fluid. |
|
|
|
|
