Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

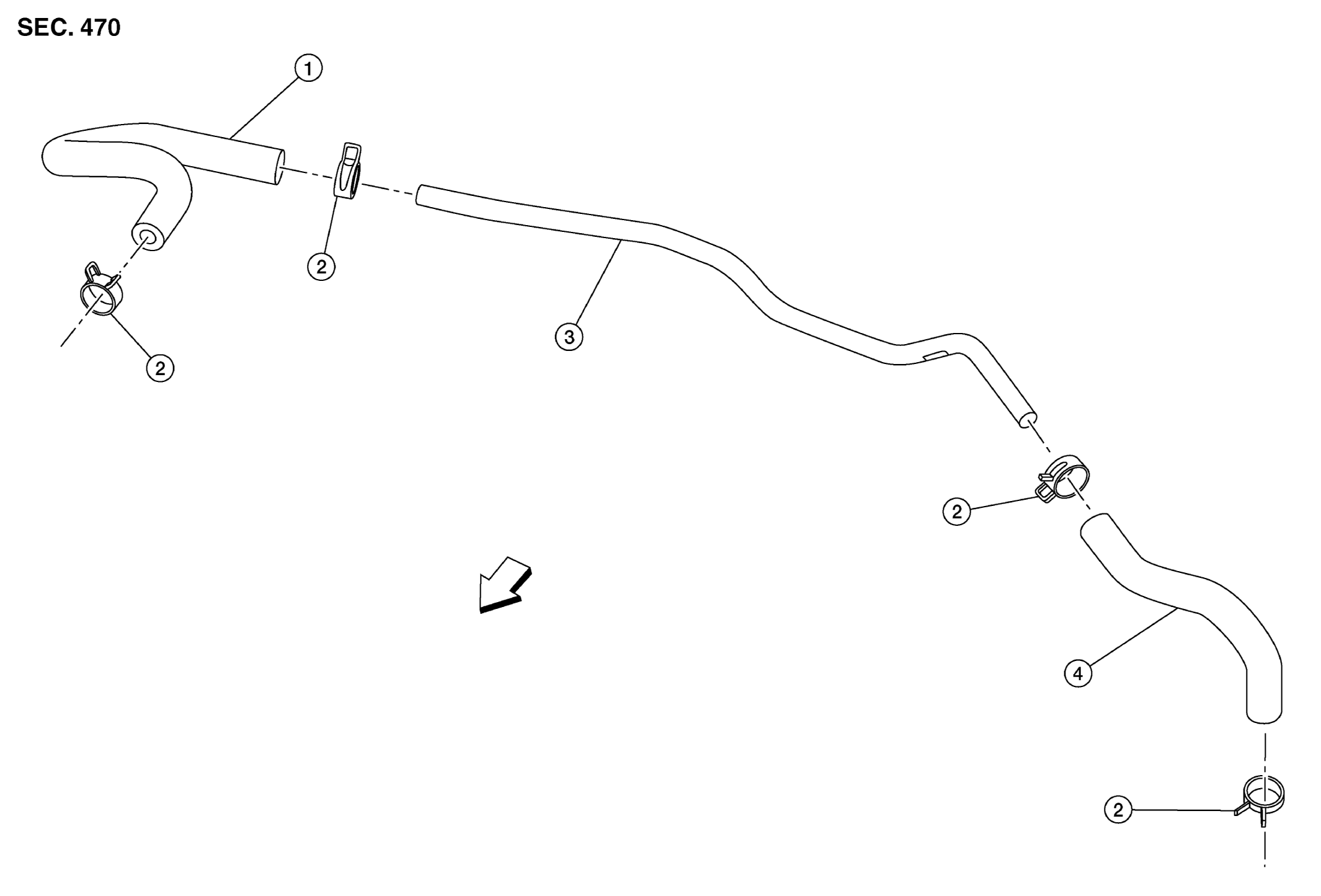

Vacuum hose without check valve

Fig 1: Exploded View Of Brake Booster Vacuum Hose

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Vacuum hose	2.	Clamp	3.	Vacuum piping
4.	Vacuum hose		Front

Vacuum hose with check valve

Fig 2: Exploded View Of Brake Booster Vacuum Hose

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Clamp	2.	Check valve direction stamp	3.	Vacuum hose
4.	Vacuum piping		Front
