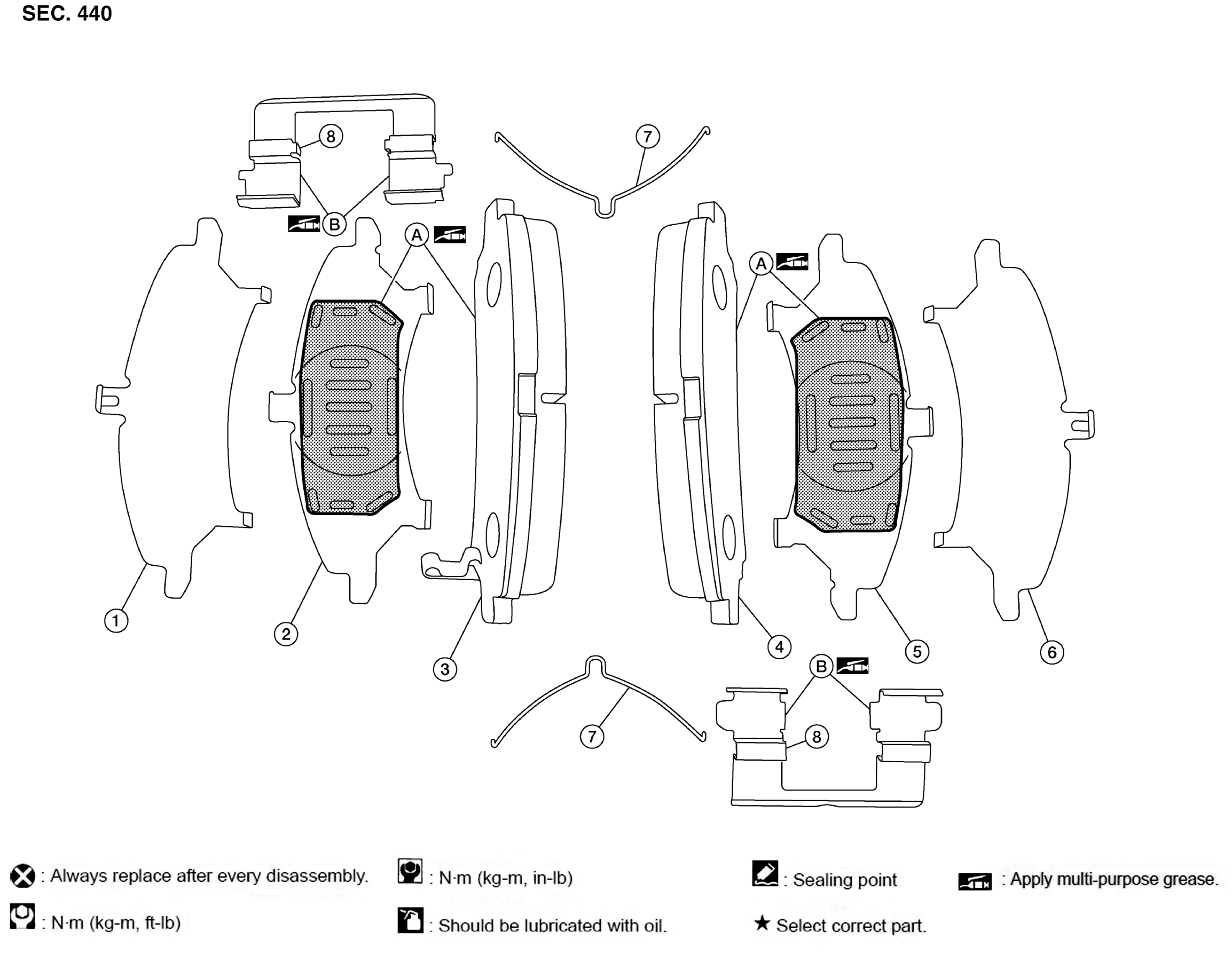

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Inner shim cover |
2. |
Inner shim |
3. |
Inner pad |
| 4. |
Outer pad |
5. |
Outer shim |
6. |
Outer shim cover |
| 7. |
Anti-rattle clips |
8. |
Pad retainers |
A. |
Molykote AS-880N grease |
| B. |
Molykote 7439 grease |
|
|
|
|
