Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

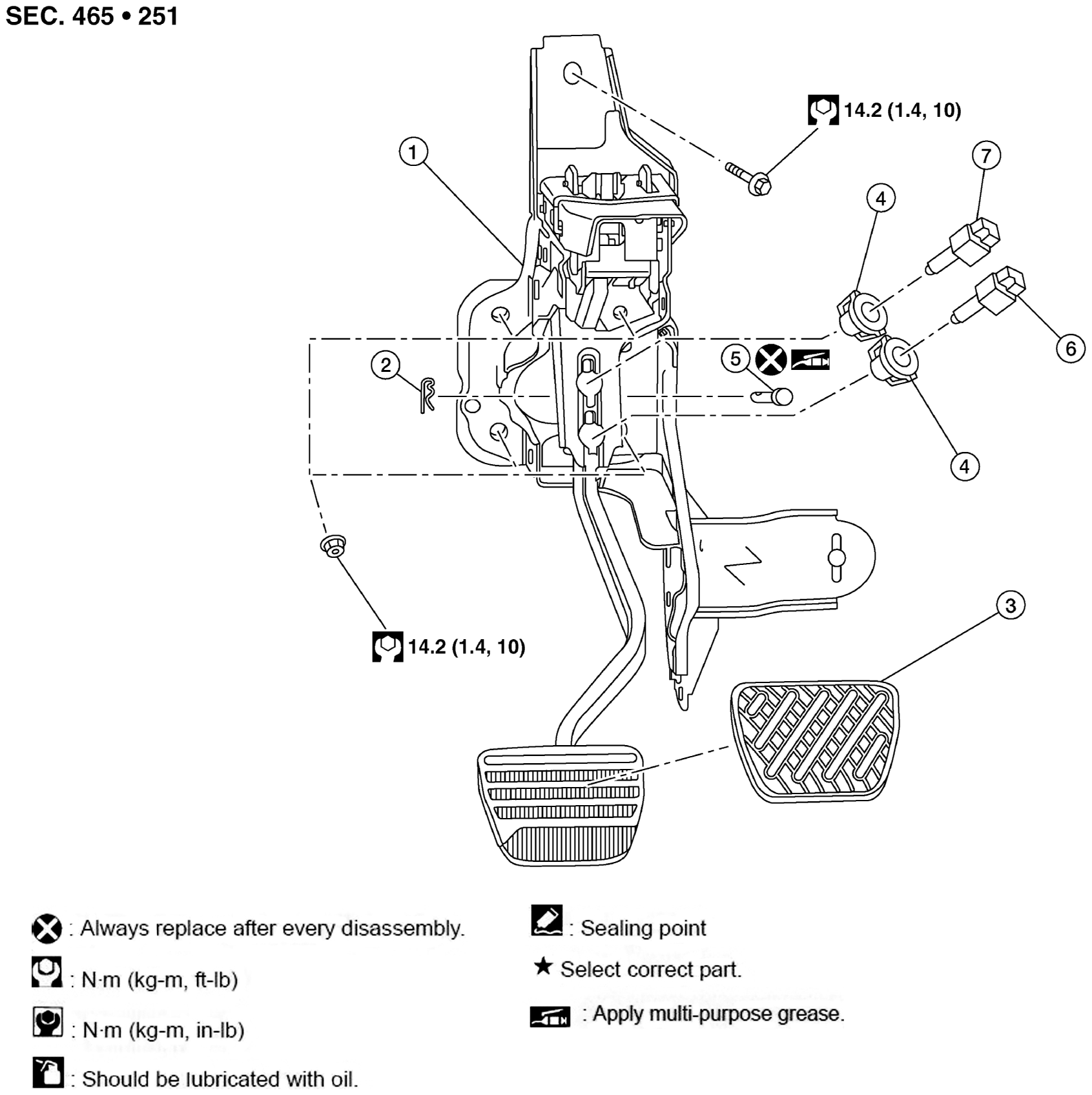

Fig 1: Exploded View Of Brake Pedal With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Brake pedal	2.	Snap pin	3.	Brake pedal pad
4.	Clip	5.	Clevis pin	6.	Stop lamp switch
7.	Brake pedal position switch
