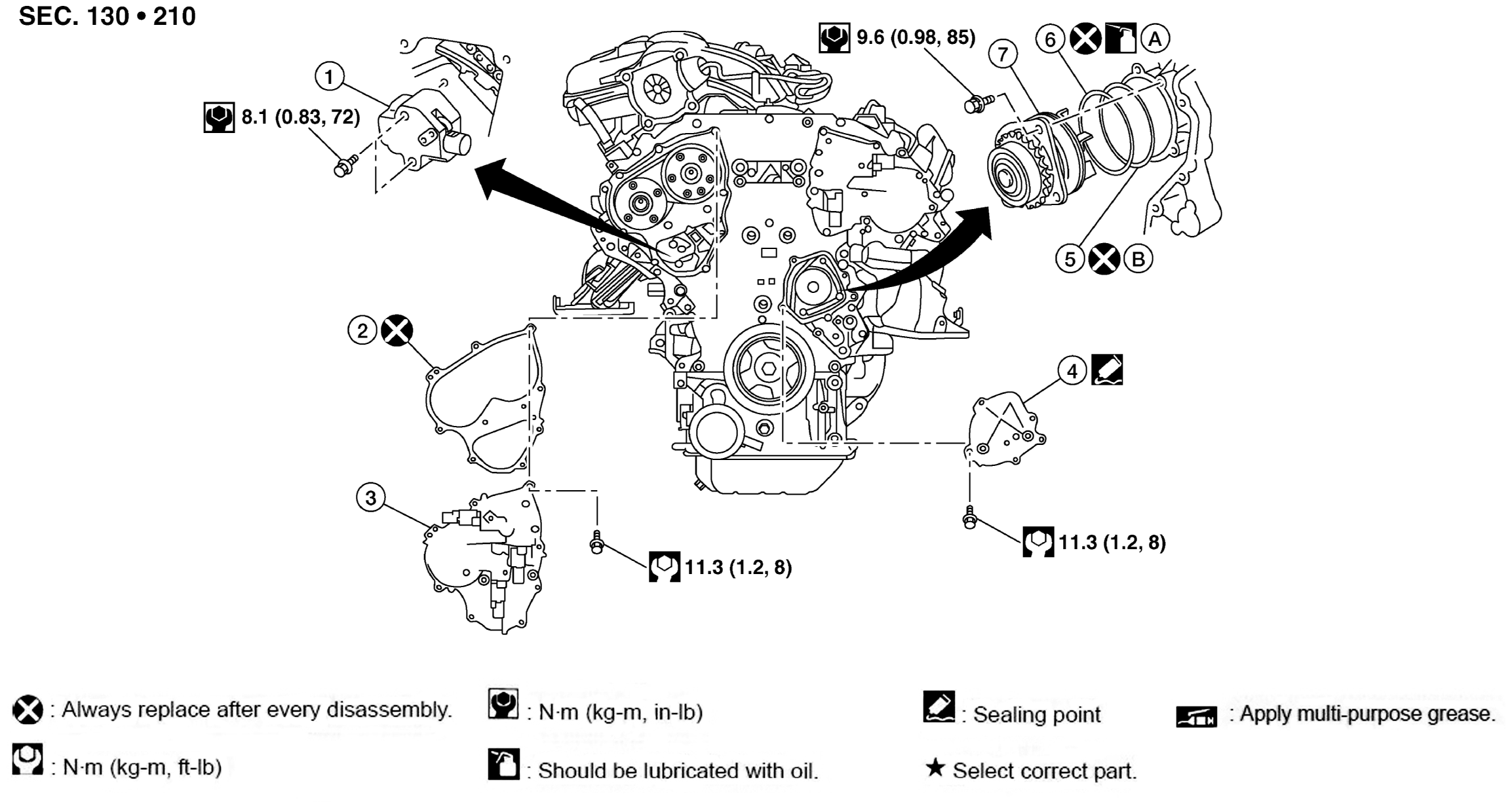

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Timing chain tensioner (primary) |
2. |
Valve timing control cover gasket (bank 1) |
3. |
Valve timing control cover (bank 1) |
| 4. |
Water pump cover |
5. |
O-ring |
6. |
O-ring (Identify with white mark) |
| 7. |
Water pump |
A. |
Apply engine oil |
B. |
Apply engine coolant. |
