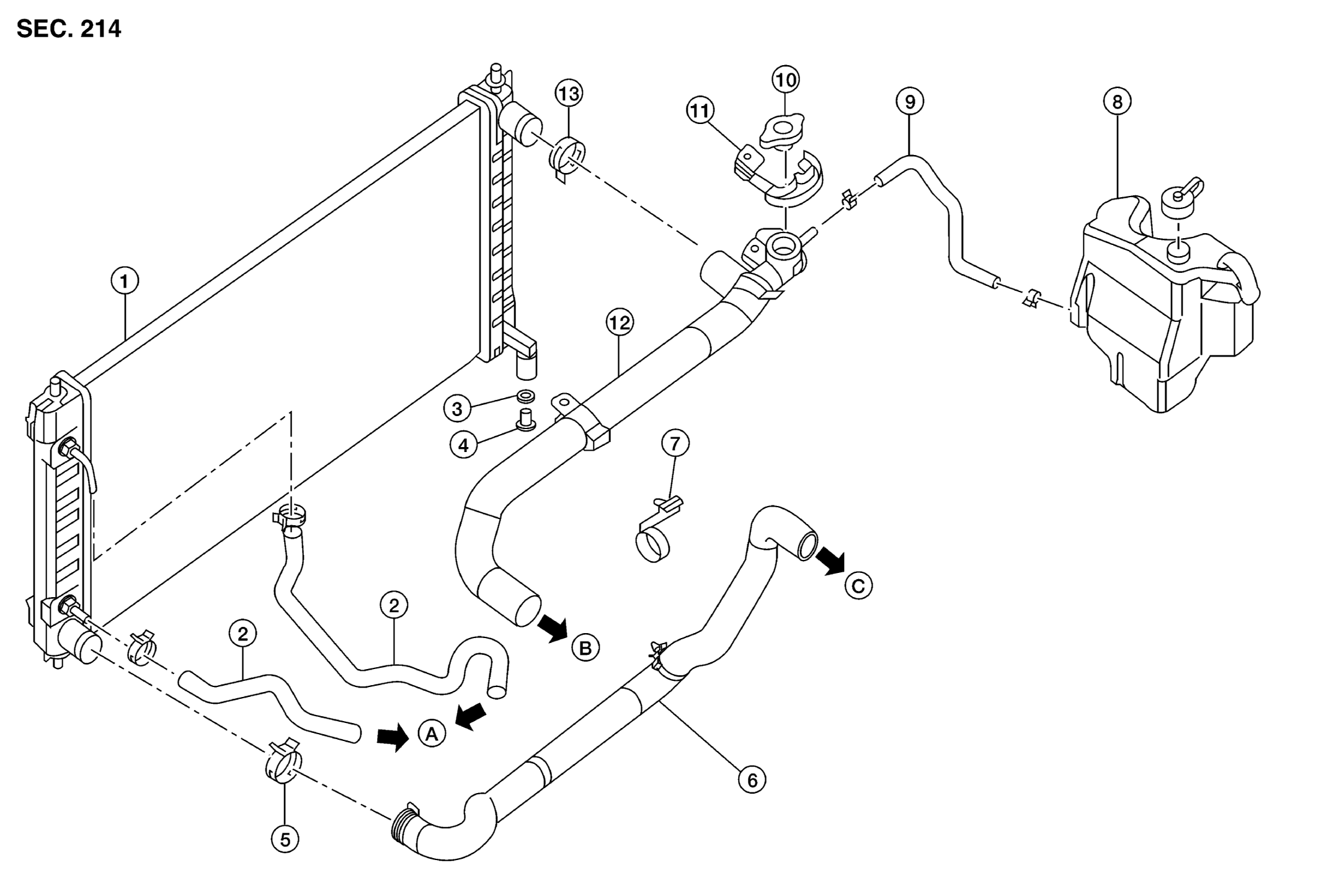

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Radiator | 2. | CVT oil cooler hose | 3. | O-ring |
| 4. | Radiator drain plug | 5. | Radiator hose (lower) clamp | 6. | Radiator hose (lower) |
| 7. | Reservoir hose (lower) bracket | 8. | Reservoir tank | 9. | Reservoir hose |
| 10. | Radiator cap | 11. | Radiator cap adapter | 12. | Radiator hose (upper) |
| 13. | Radiator hose (upper) clamp | A. | To CVT | B. | To water outlet |
| C. | To water inlet |
