System Description (Except For CANADA)
>>
System Diagram
System Diagram

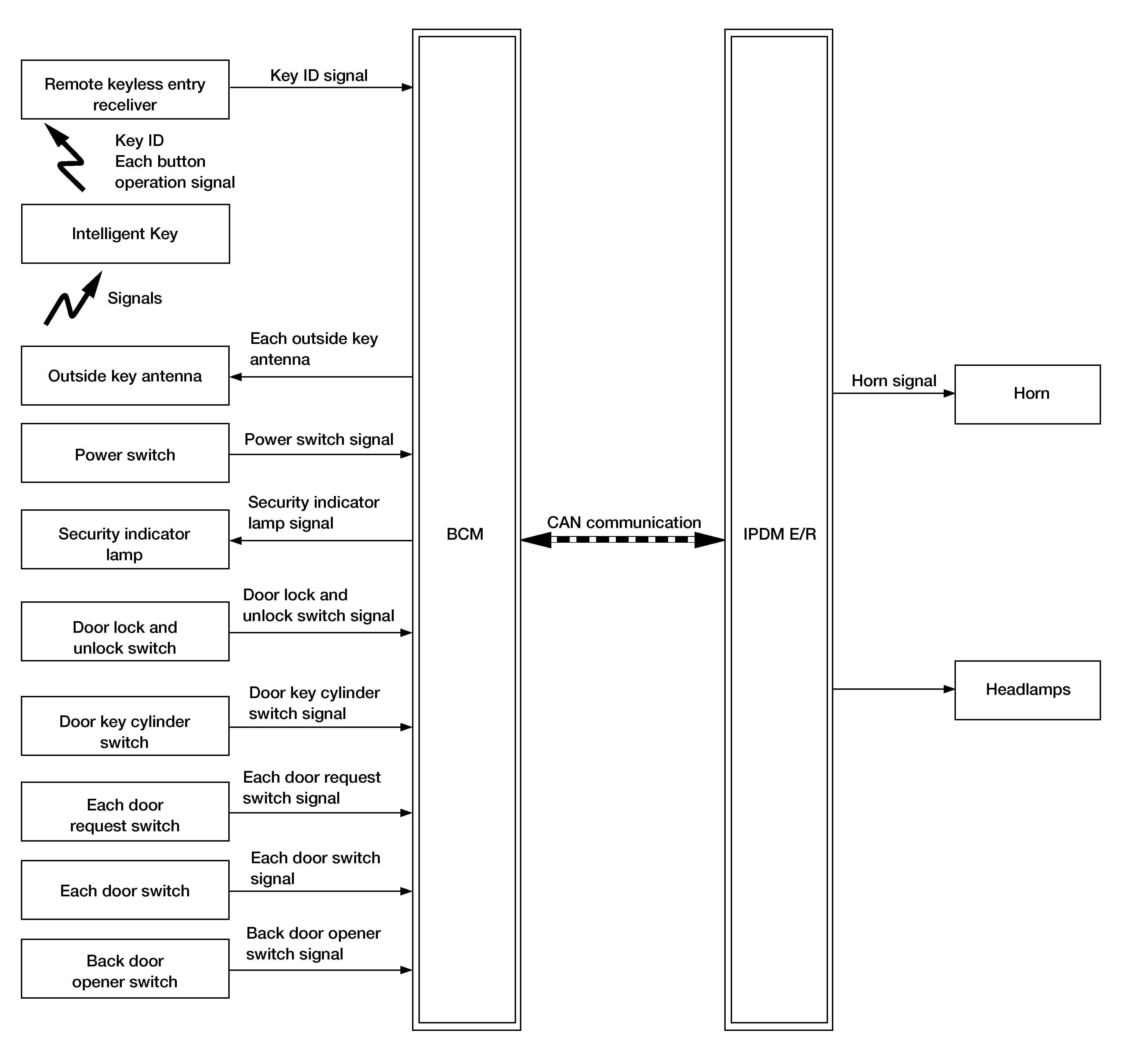

Fig 1: Vehicle Security System Diagram (Except For Canada)
Courtesy of NISSAN NORTH AMERICA, INC.
