Exploded View With Torque Specifications

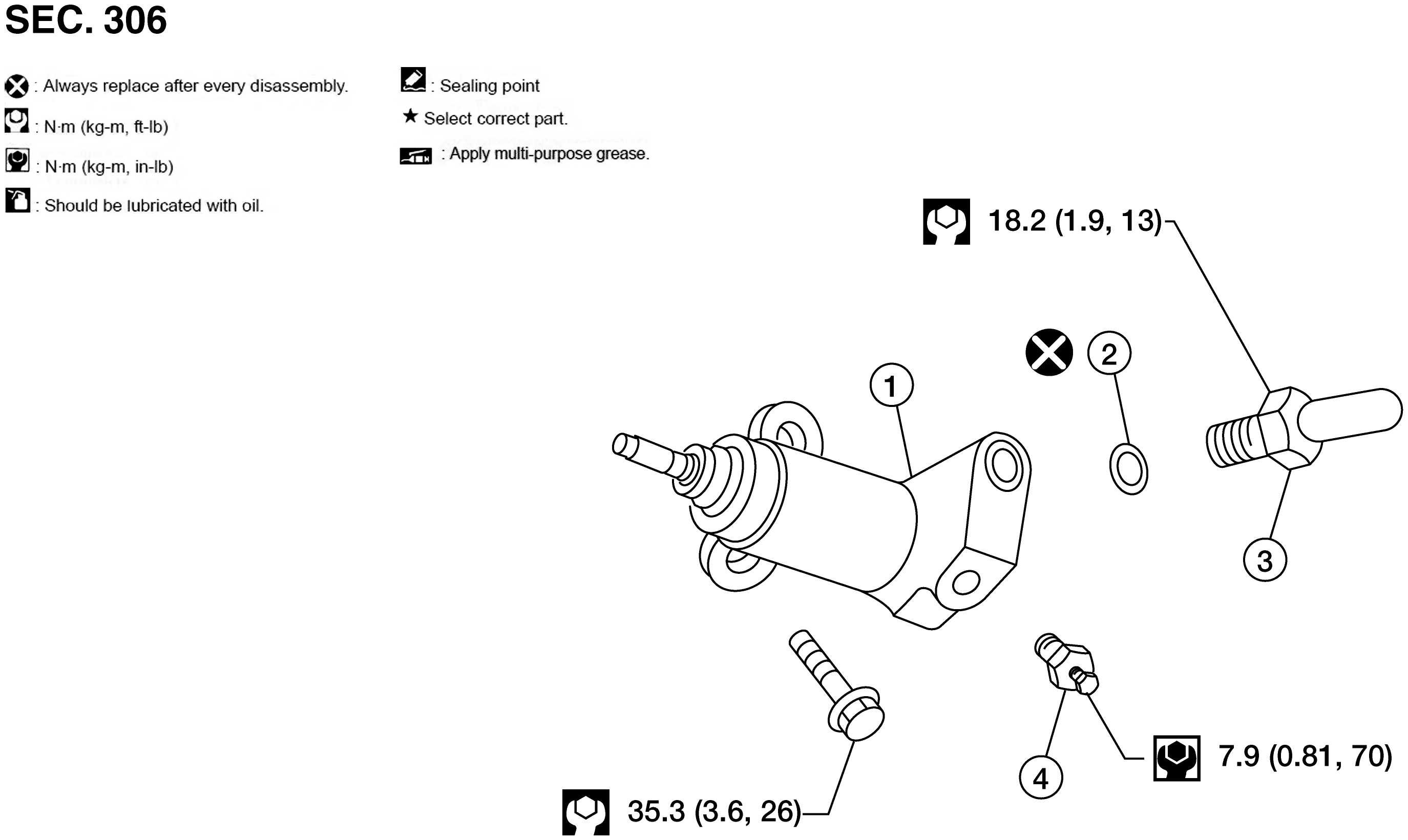

Fig 1: Exploded View Of Operating Cylinder With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Operating cylinder	2.	Copper sealing washer	3.	Clutch hose
4.	Air bleeder
