Disassembly And Assembly: Notes

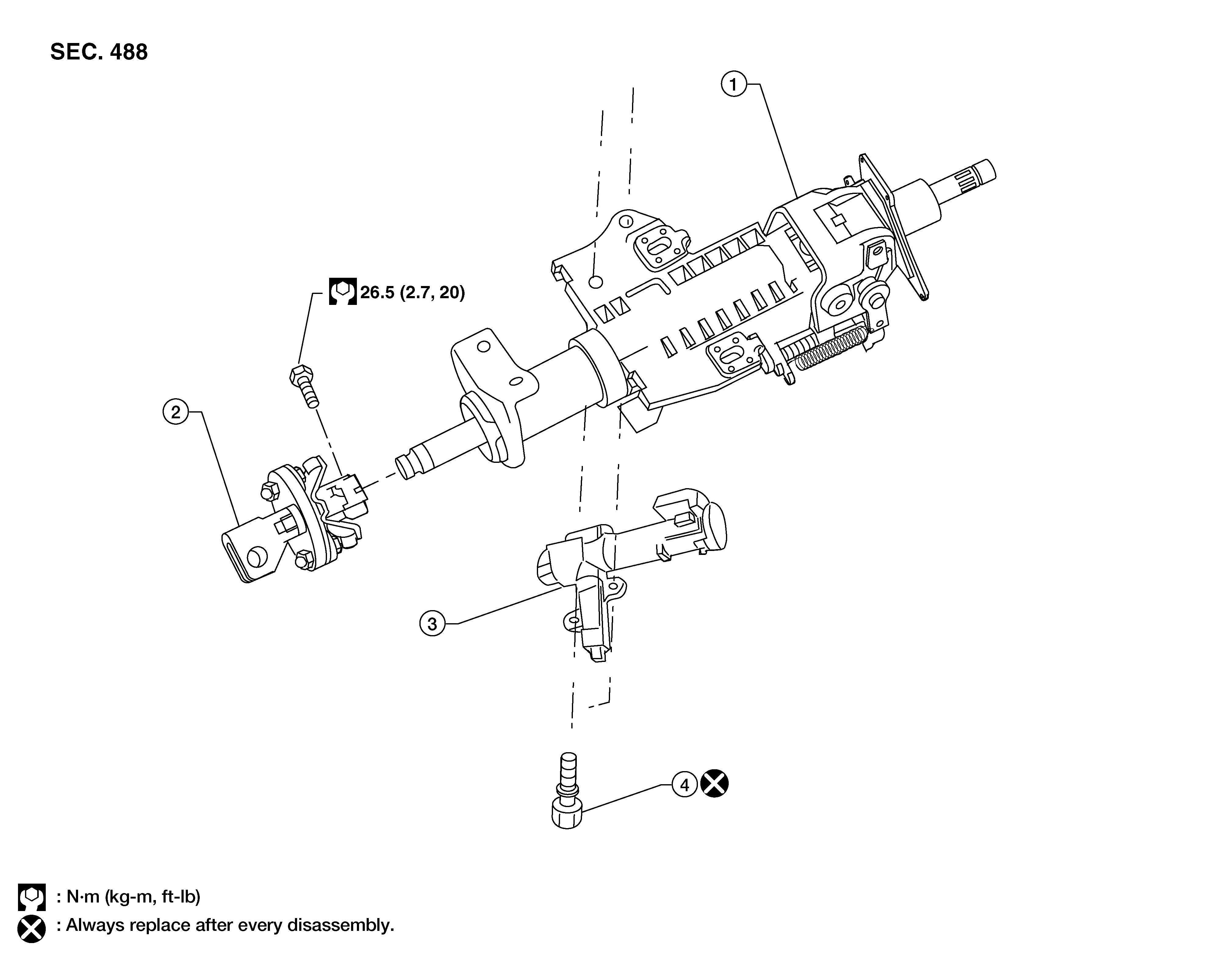

Fig 1: Exploded View Of Steering Column With Torque Specifications
G04150731Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering column assembly 2. Upper joint 3. Steering lock unit
4. Self-shear screw
CAUTION:

With the steering linkage disconnected, the spiral cable may snap by turning the steering wheel beyond the limited number of turns. The spiral cable can be turned counterclockwise about 2.5 turns from the neutral position.
