Removal (CANADA Only)

1. Remove instrument panel. Refer to REMOVAL AND INSTALLATION .

2. Disconnect the harness connector from the immobilizer control unit.

3. Remove the immobilizer control unit screw (A) and remove the immobilizer control unit (1) from behind the heating and cooling unit assembly (2).

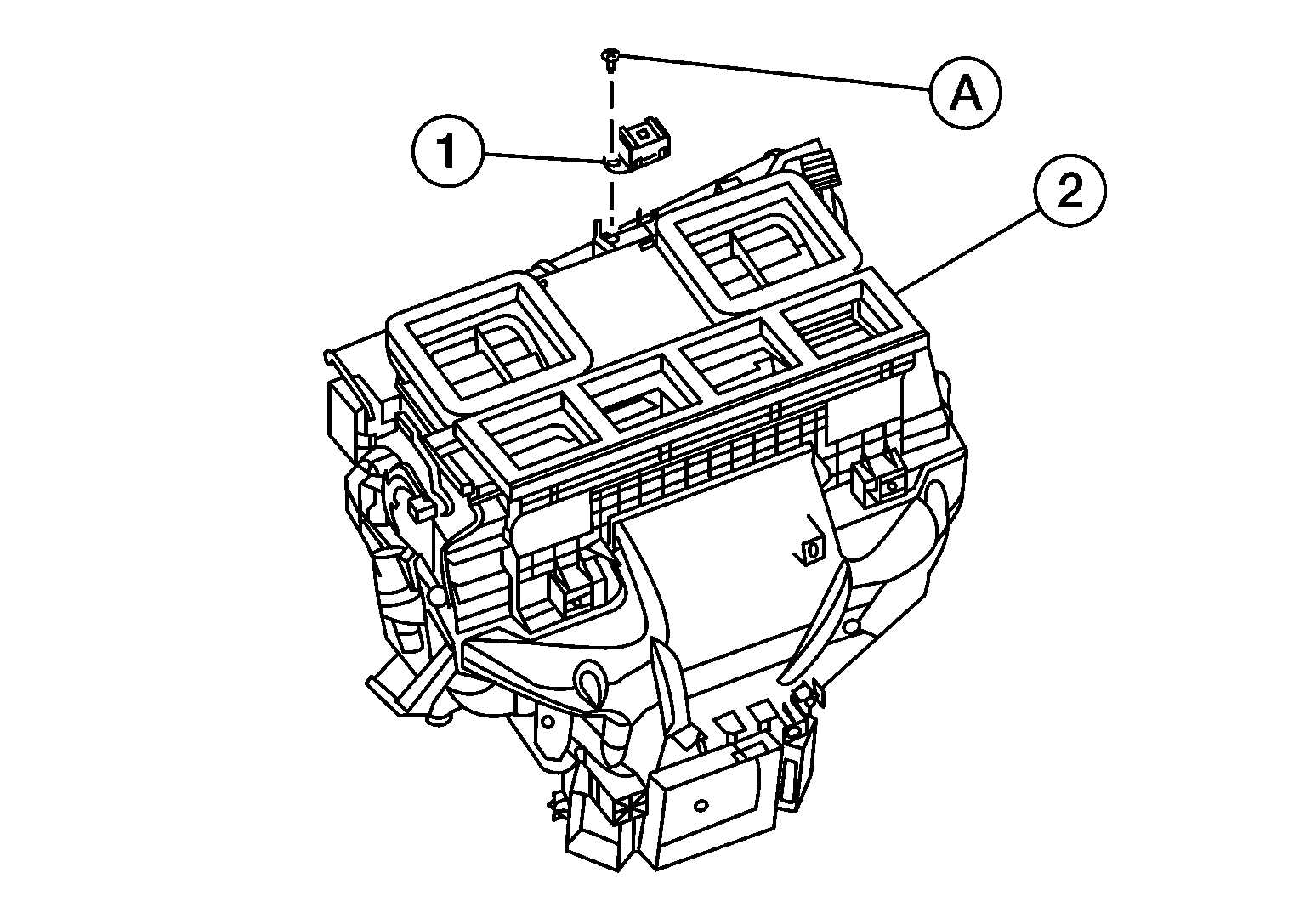

Fig 1: Identifying Immobilizer Control Unit, Heating And Cooling Unit Assembly And Screw

Courtesy of NISSAN NORTH AMERICA, INC.
