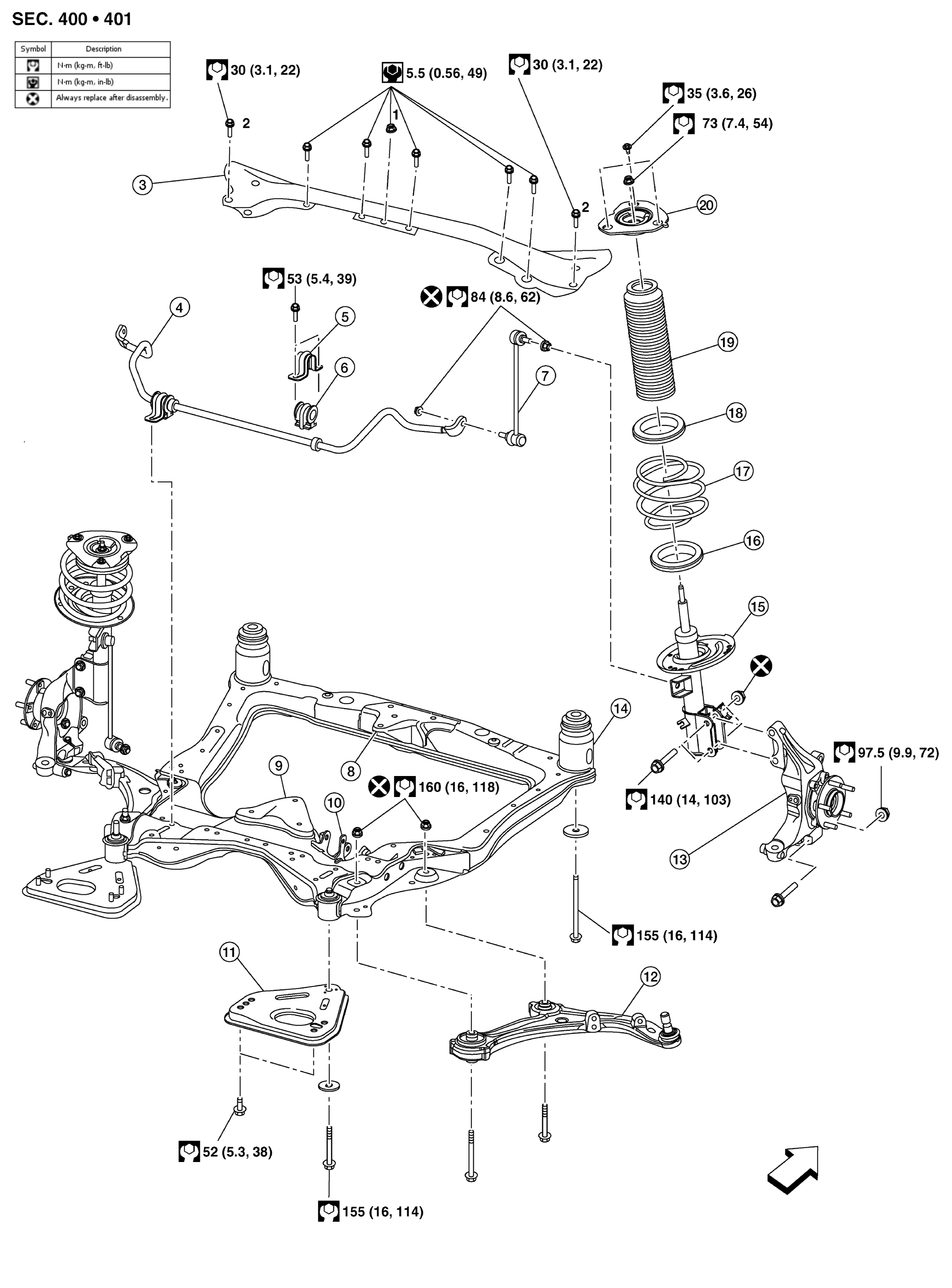

Exploded View With Torque Specifications
| 1-2. | Tightening order for nut and bolts | 3. | Strut tower bar | 4. | Stabilizer bar |
| 5. | Stabilizer clamp | 6. | Stabilizer bushing | 7. | Stabilizer connecting rod |
| 8. | VQ35DE front mount bracket | 9. | VQ35DE rear mount bracket | 10. | QR25DE mount bracket |
| 11. | Front suspension member stay | 12. | Transverse link | 13. | Steering knuckle |
| 14. | Front suspension member | 15. | Front suspension strut | 16. | Front spring lower rubber seat |
| 17. | Front spring | 18. | Strut mount bearing | 19. | Bound bumper |
| 20. | Strut mount insulator | Front |
