Exploded View With Torque Specifications

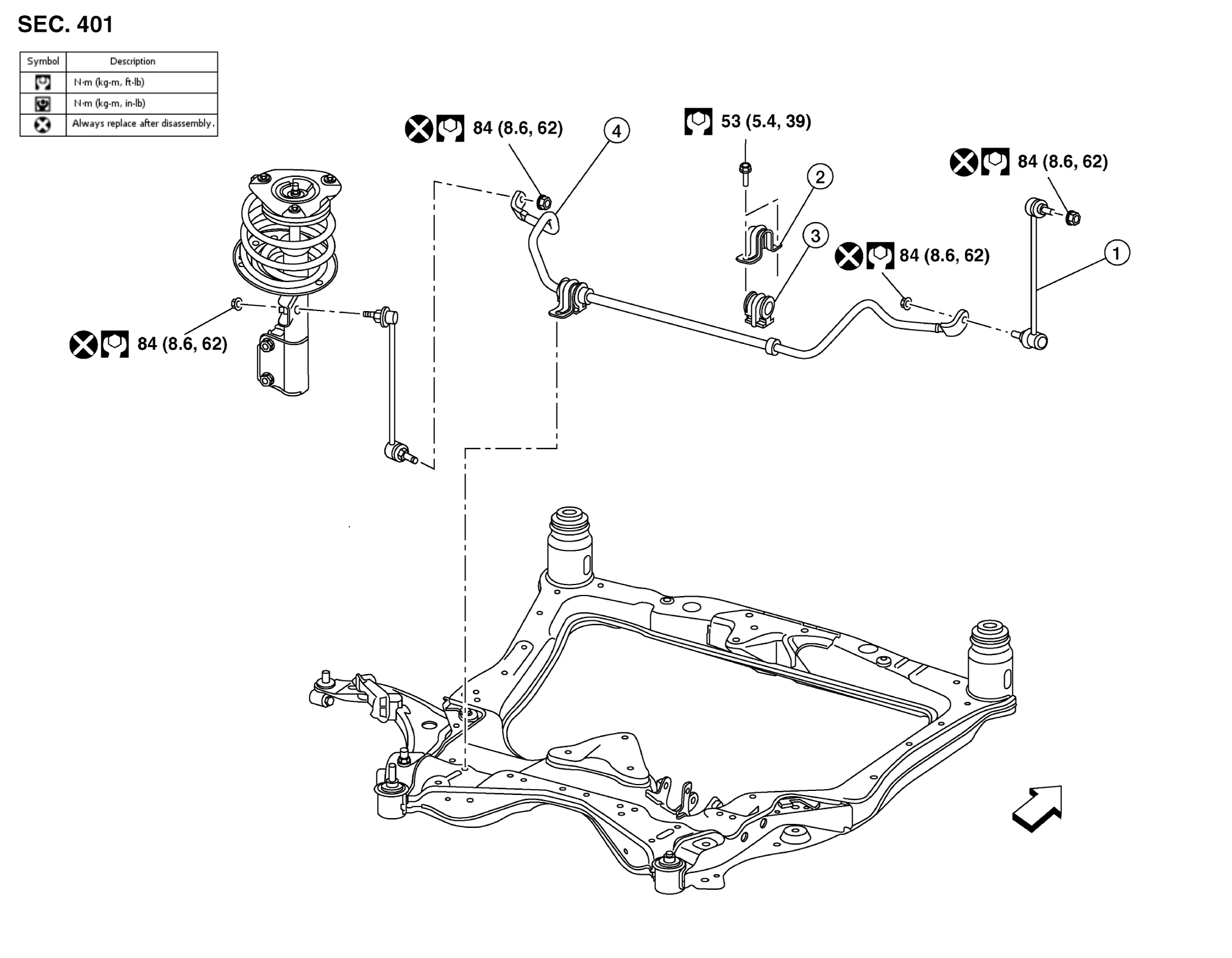

Fig 1: Front Stabilizer With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Stabilizer connecting rod	2.	Stabilizer clamp	3.	Stabilizer bushing
4.	Stabilizer bar		Front
