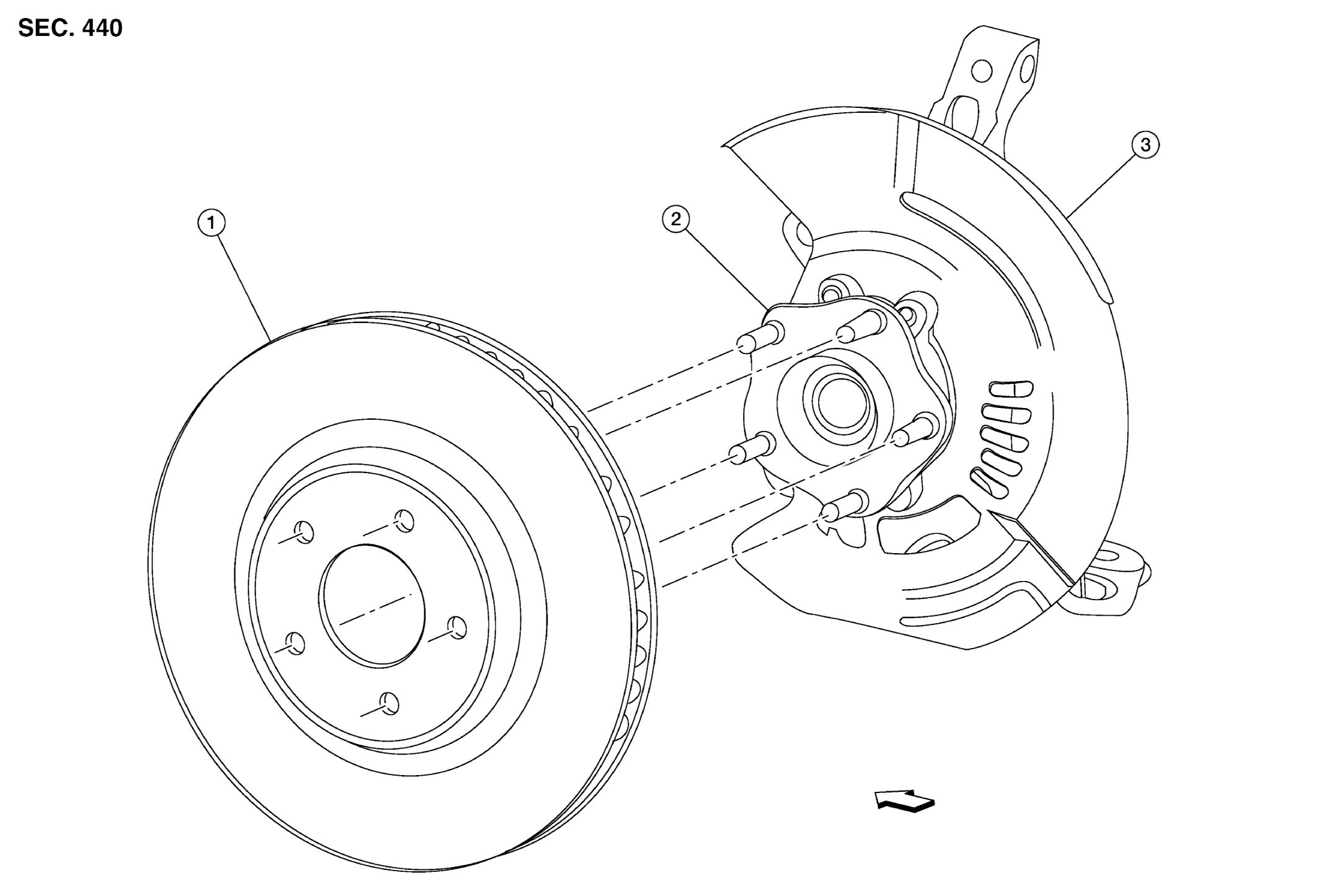

Exploded View

WARNING: This page is about a different car, the 2017 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front disc brake rotor	2.	Front wheel hub and bearing assembly	3.	Splash guard
	Front
