Exploded View: RH

WARNING: This page is about a different car, the 2017 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

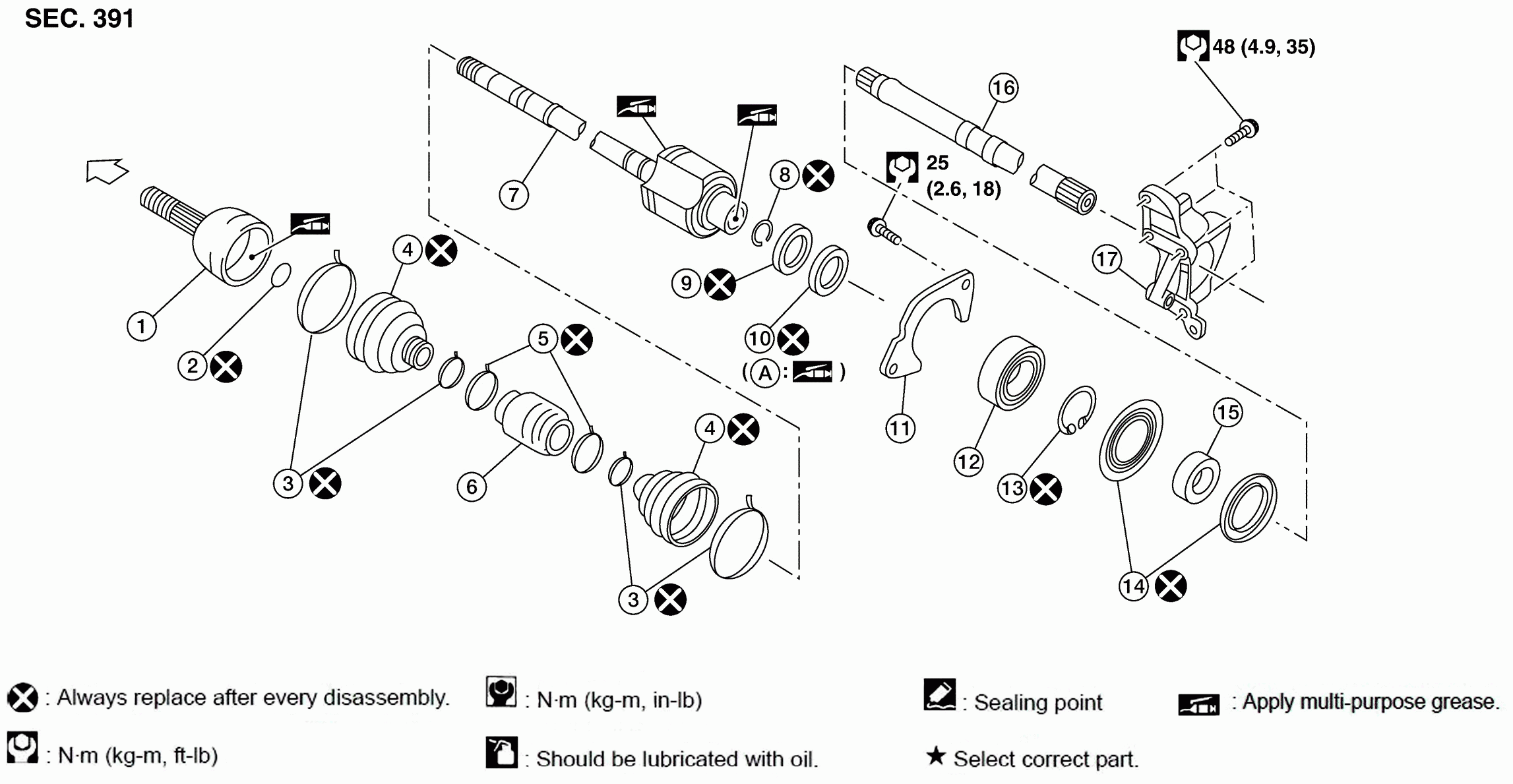

Fig 1: Front Drive Shaft Boot RH With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Joint sub-assembly	2.	Circular clip	3.	Boot band
4.	Boot	5.	Damper band (if equipped)	6.	Dynamic damper (if equipped)
7.	Housing assembly	8.	Circular clip	9.	Dust shield
10.	Oil seal	11.	Bearing retainer	12.	Bearing
13.	Snap ring	14.	Dust shield	15.	Collar
16.	Link shaft	17.	Support bearing bracket	A:	Oil seal lip
	Wheel side
	Fill NISSAN Genuine grease or equivalent.
